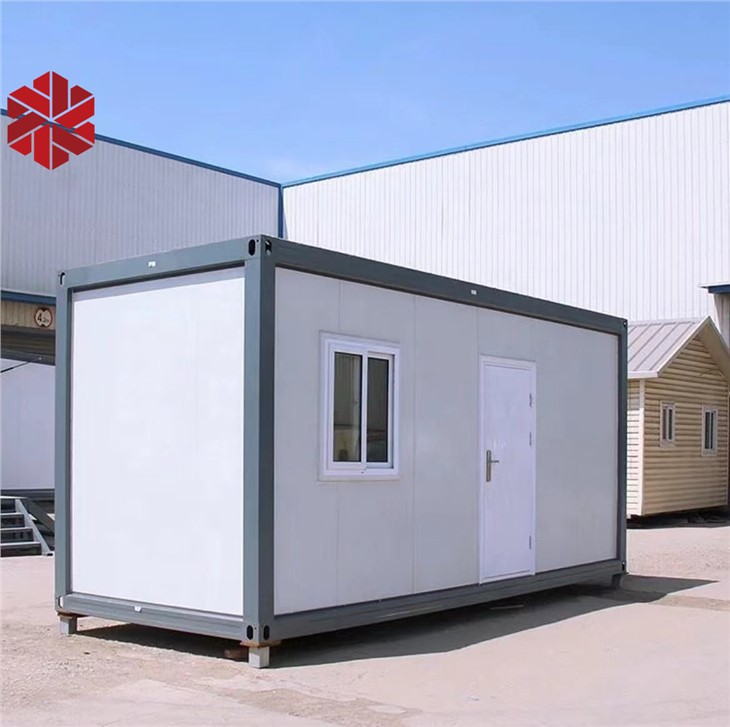

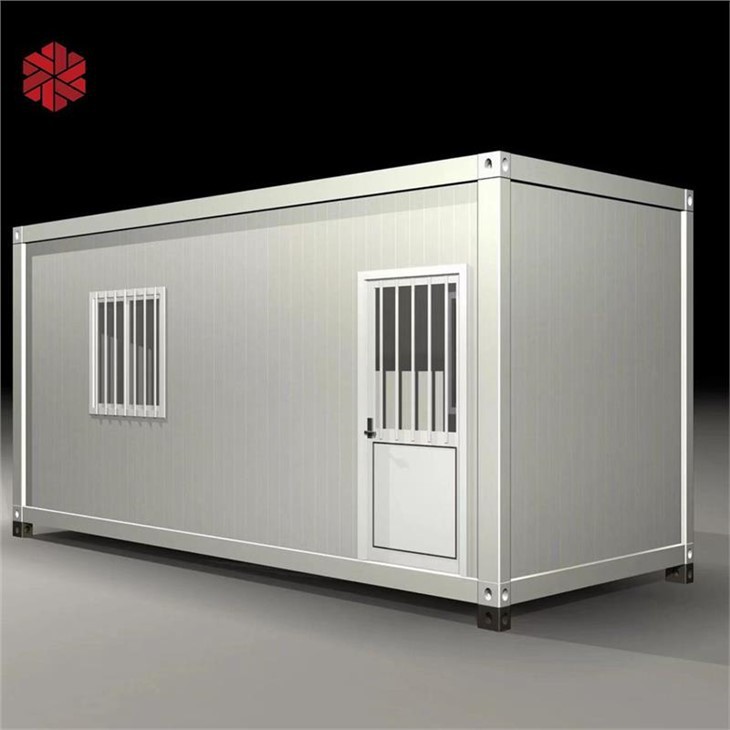

Overview
The Vertical Shipping Container House is a modern and sustainable solution that combines architectural innovation with efficient, eco-friendly construction. Suitable for a variety of applications, including housing developments, remote retreats, offices, and more, it offers flexibility, durability, and a reduced environmental impact.
Engineered for cost-effectiveness and fast installation, these modular units can be tailored to meet diverse customer requirements, from layout and materials to design aesthetics.
Product Features
- Flexible modular design with customizable layouts, finishes, and configurations.
- Made from repurposed shipping containers and recyclable materials, minimizing environmental impact.
- Quick to assemble and disassemble — ideal for mobile or temporary installations.
- Highly durable structure with weather and corrosion resistance, suitable for harsh climates.
- Prefabricated off-site to reduce on-site disruption and construction time.
- Enhanced rainproof and thermal insulation properties for long-term comfort.
Specifications
| Specification | Details | ||
|---|---|---|---|
| Design Life | 20 years | ||
| Sound Insulation | ≥25dB | ||
| Waterproofing | Integrated internal drainage | ||
| Top Frame | 2.5mm galvanized beams (170mm wide, 5380mm/2118mm length) | 4 pcs | |
| Cross Braces | C80×1.2mm galvanized, 80g/㎡ | 6 pcs | |
| Bottom Frame | 2.5mm galvanized beams (160mm wide) | 4 pcs | |
| Steel Profile | 1.2m length | 9 pcs | |
| Columns | 2.5mm galvanized, 2180mm height | 4 pcs | |
| Corner Fittings | 3.5mm galvanized (210×150mm upper/lower) | 8 pcs | |
| Roof Panel | 0.45mm color steel, 360° waterproof joint | 1 pcs | |
| Insulation | 75mm glass wool, λ=0.036W/m·K | 1 pcs | |
| Ceiling | 0.35mm steel, integrated coated board | 1 pcs | |
| Flooring | Calcium silicate board (18mm) + 1.6mm plastic layer | 5 pcs | |
| Windows | Plastic steel, 1130×1100mm, double-glazed | 2 pcs | |
| Door | Steel, 840×2030mm, fireproof lock | 1 pcs | |
| Electrical System | 2×36W LED lights, sockets, internal wiring, waterproof seals | 1 set | |
| Fire Resistance | Level A | ||
| Seismic Resistance | Level 8 | ||
| Wind Load | 0.50kN/㎡ | ||
| Roof Load | 0.8kN/㎡ | ||
| Floor Load | 2.0kN/㎡ | ||
Advantages
- Cost-effective and energy-efficient design.
- Quick installation and easy transportation.
- Flexible layout for a wide range of applications.
- Durable and low-maintenance structure.
- Competitive pricing without compromising quality.
- Strict quality control and industry-standard compliance.
- Suitable for both temporary and permanent housing needs.
- Supports circular economy through reuse of materials.
Logistics & Installation (Key Info)

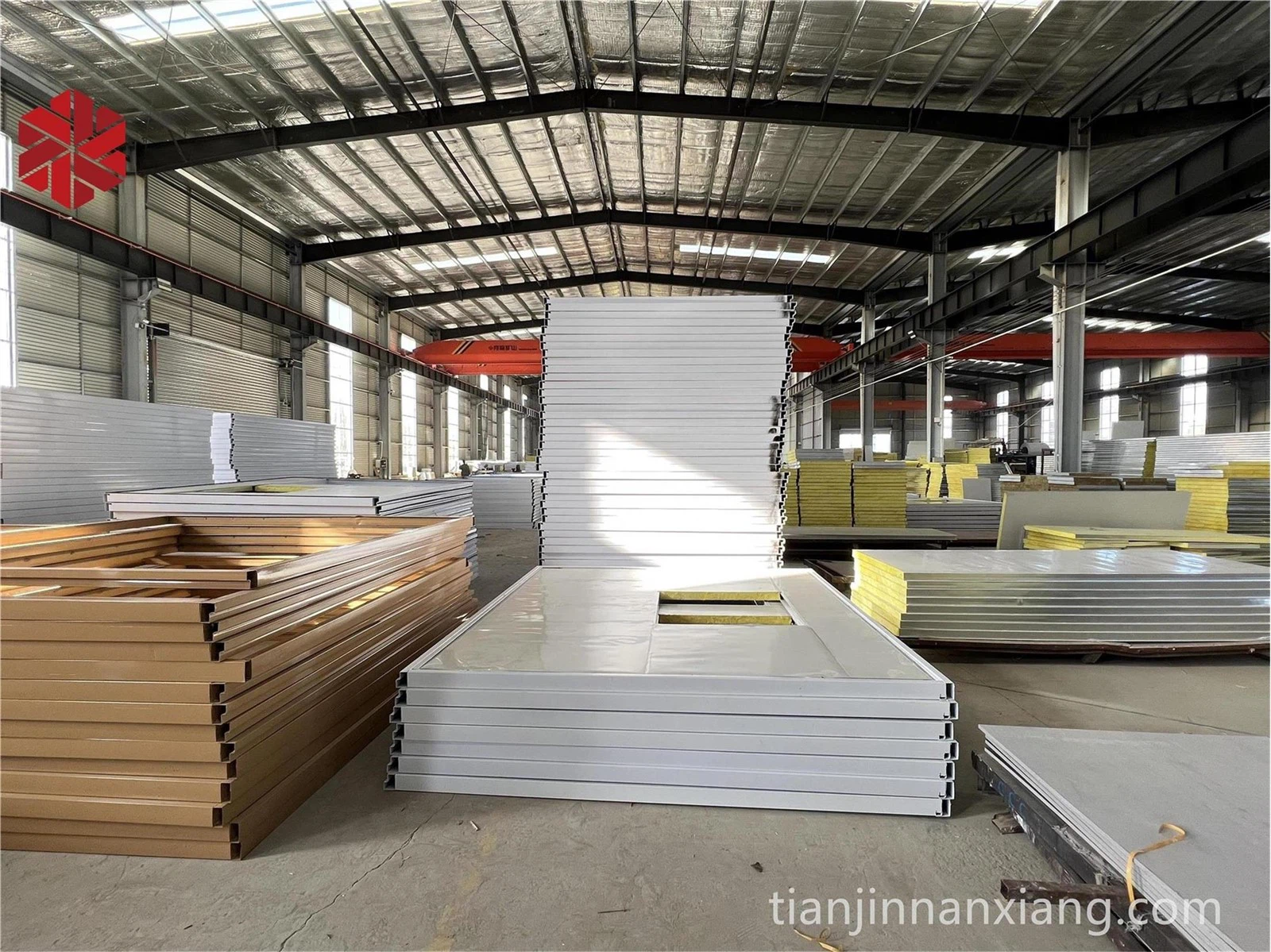

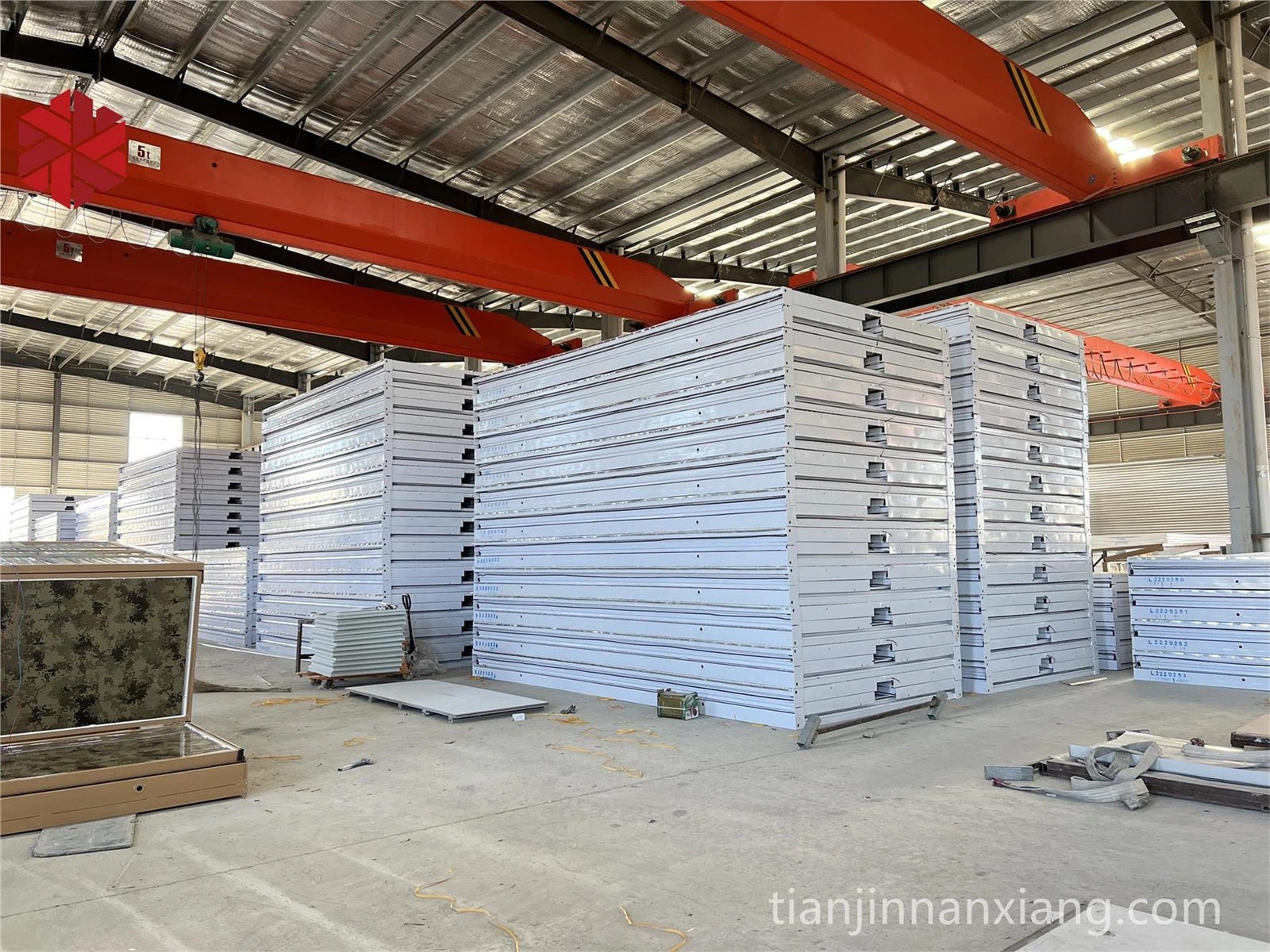

The Vertical Shipping Container House is fully prefabricated, allowing for efficient transport and rapid assembly on-site. All components are factory-produced and packed for optimized shipping. Units can be disassembled and reused multiple times, reducing operational costs and environmental impact.
This solution is ideal for construction sites, remote areas, or urban expansions where speed, cost, and sustainability are critical factors. It enables quick deployment of livable space while maintaining a strong structural profile and weather resistance.
