Overview

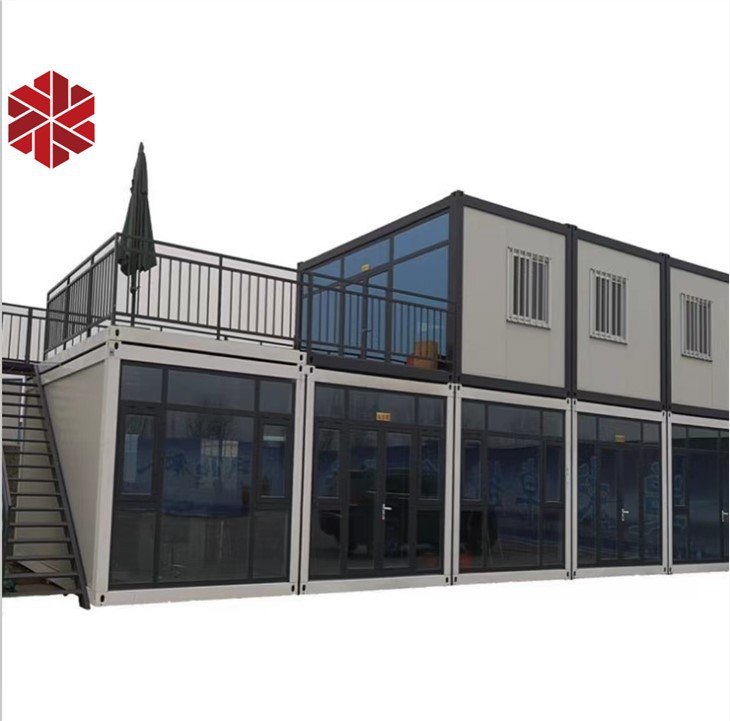

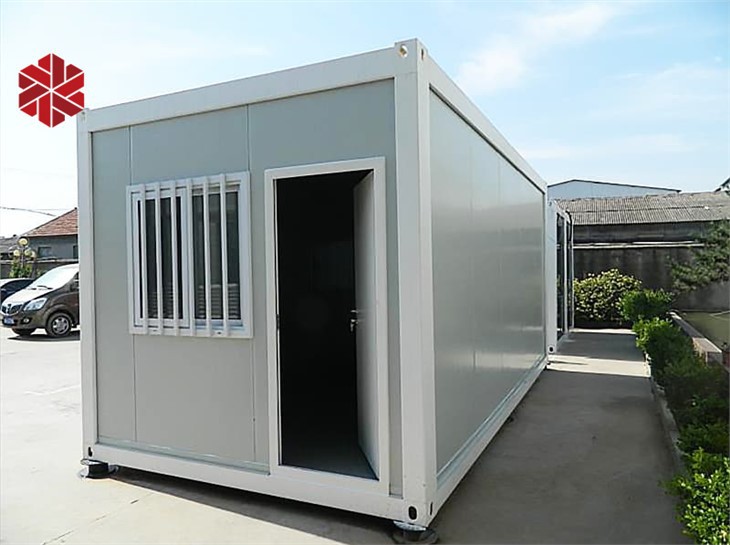

Tiny Homes Out Of Shipping Containers offer an innovative and sustainable housing solution for individuals seeking affordability, durability, and versatility. These homes are constructed using repurposed shipping containers and are ideal for use as full-time residences, guest houses, offices, or vacation homes.
They provide the comforts of a traditional home while being eco-friendly and easier to transport and install. Designed for modern needs, these units cater to minimalists, adventurers, and environmentally conscious users alike.
Product Features
- High recycling rate and minimal construction waste.
- Reduces water usage and concrete loss by approximately 60%.
- Shortens construction period by more than 60%.
- Energy savings of about 50% during production and use.
- Designed for solid structure, long lifespan, and fast assembly.
- Environmental sustainability through waste material reuse.
Specifications
| Specification | Details | |||
|---|---|---|---|---|
| External Dimensions | 6055×2990×2896mm | |||
| Package Dimensions | 6055×2990×720mm | |||
| Performance | Design Life | 20 years | Wind Resistance | 0.50kN/㎡ |
| Sound Insulation | ≥25dB | Fire Resistance | Level A | |
| Waterproofing | Internal drainage system | Seismic Performance | Level 8 | |
| Ground Load | 2.0kN/㎡ | Roof Load | 0.8kN/㎡ | |
| Wall Panel | Type 950, 60mm rock wool, 0.45mm double-sided steel, 65kg/m³ density, white | 1 set | ||
| Frame | Top Main Beam | 2.5mm galvanized, 180mm width | 4 pcs | |
| Top Article | C80×2.5mm galvanized | 7 pcs | ||
| Bottom Main Beam | 2.5mm galvanized, 160mm width | 4 pcs | ||
| Bottom Strip | 60×120mm square tube×1.2mm, C120 steel×2.5mm | 9 pcs | ||
| Floor Board | 18mm cement sanding board, 1176×2810mm×5 sheets | 1 set | ||
| Upright Columns | 2.5mm galvanized, 210×150×2526mm | 4 pcs | ||
| Hex Screws | M-type bolts | 48 pcs | ||
| Corner Pieces | Galvanized, 210×150mm, 4.0mm thick | 8 pcs | ||
| Surface Treatment | Electrostatic spray, galvanized (≥80μm) | 1 set | ||
| Roof Panel | 0.45mm thick, 360° sealed | 1 set | ||
| Roof Insulation | 60mm glass wool, PE resin film | 1 set | ||
| Downpipes | PVC, ¢50mm, L2800mm | 4 pcs | ||
| Ceiling Tiles | 0.35mm thick, type 831 | 1 set | ||
| Flooding Trough | 5633mm×2, 2688mm×2 | 1 set | ||
| Door | W≥840mm×H2035mm, 0.3mm steel, handle lock | 1 set | ||
| Windows | UPVC sliding, 930×1100mm, double-glass, anti-theft, with screen | 2 pcs | ||
| Flooring | 1.6mm PVC, non-slip, hot-melt welding seams | 1 set | ||
| Interior Accessories | 0.5mm color steel corners, PVC brown skirting | 1 set | ||
| Electric System |
Lighting: 2×36W square lamps Sockets: 1×3-hole (AC), 4×5-hole, 1×single switch Wiring: 4mm² for inlet/AC, 2.5mm² for sockets, 1.5mm² for lights Electrical box: concealed, 32A leakage protector Industrial inlet socket | 1 set | ||
Advantages
- Easy to assemble and suitable for permanent or temporary structures.
- Expert design and manufacturing teams.
- Advanced customization capabilities to meet varied requirements.
- Strong customer-centric approach with high service standards.
- Reliable quality control — no compromises on materials or construction.
- Continuous product innovation to align with market demand.
- Built with durable and eco-conscious components.
Logistics & Installation (Key Info)

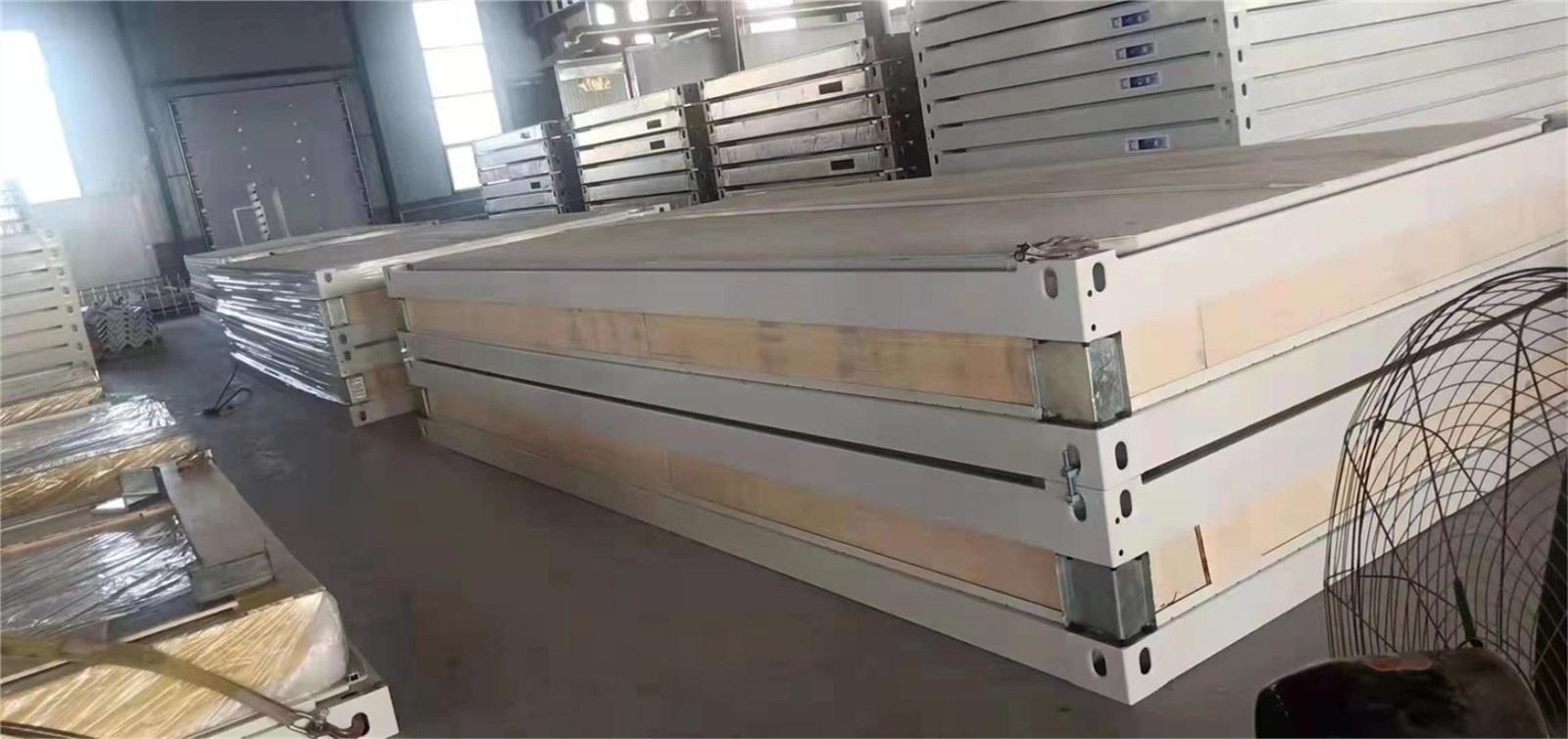

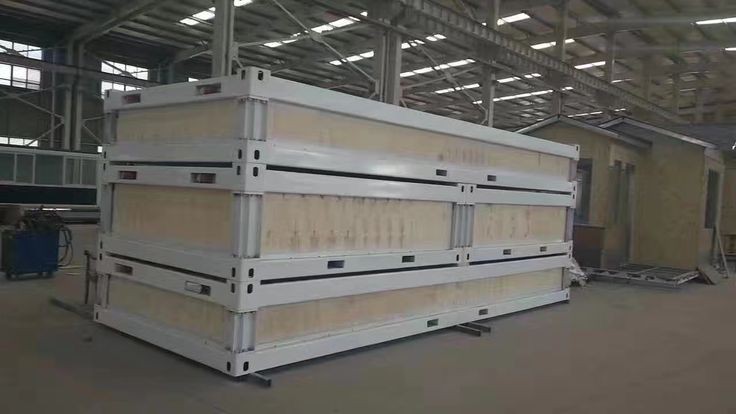

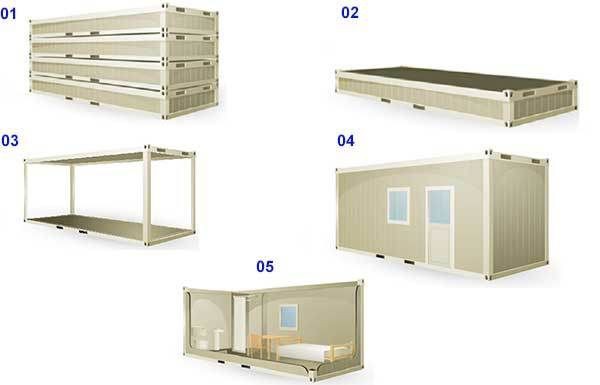

Tiny Homes Out Of Shipping Containers are engineered for quick installation and easy transport. Their flat-pack structure allows for reduced volume during shipment and rapid assembly on-site. Each unit can be set up efficiently, minimizing construction timelines and labor.
They are ideal for construction sites, street cafes, mobile shops, or residential use, providing modular, self-contained units that maintain structural integrity even under extreme weather conditions or seismic events.
