Prefab Modular Foldable Container House

Folding container houses are a type of modular housing that are designed to be portable, easy to assemble, and cost-effective. These types of homes are made from prefabricated steel or aluminum frames, which are then covered with panels made from materials like steel, aluminum, or glass. The key…

Overview

The prefab modular foldable container house is a new, multi-functional housing solution designed for convenient and flexible living. These homes are an excellent option for a variety of applications, including temporary accommodation, disaster relief, remote work sites, and affordable housing. They are highly praised for their portability, durability, and cost-effectiveness.

Made from prefabricated steel or aluminum frames covered with high-quality panels, these houses are engineered for longevity and safety. They are designed to withstand diverse weather conditions and natural disasters. The main steel frame is sturdy and resistant to corrosion and pests, while insulated walls, floors, and roofs provide thermal and acoustic comfort.

Features and Advantages

  • Quick Assembly: The modular and foldable design makes transportation and installation fast and easy. Units can be collapsed into a compact size for shipping, and then assembled with simple tools within a few hours.
  • Cost-Effective: These homes are a less expensive alternative to traditional construction, with lower labor and material costs. Their reusable and relocatable nature also saves on demolition and rebuilding costs.
  • Portable: The folding design makes these homes easy to transport and relocate, ideal for remote or temporary housing needs.
  • Customizable: Available in various sizes, configurations, and colors. You can choose the interior layout, decoration, and amenities, including plumbing, electrical systems, and furniture.
  • Eco-Friendly: Constructed from recycled and recyclable materials, reducing the environmental footprint and waste associated with traditional building. They can also be customized to meet green building standards for energy and water savings.

Specifications

ComponentSpecificationSize / QuantityUnit
FloorGrade A fireproof glass magnesium plate15mm / 5Piece
WallboardHeat insulation rock wool composite sandwich panel (side wall)0.326mm color steel plate / 50mm / 65kg/m³ rock wool / 8Piece
Heat insulation rock wool composite sandwich panel (front and rear walls)0.326mm color steel plate / 50mm / 65kg/m³ rock wool / 6Piece
WindowAluminum alloy anti-theft push-pull window with screen950mm x 1200mm / 2Piece
DoorSpecial anti-theft door for folding container860mm x 1980mm / 1Piece
Electrical SystemCircuit protector1Set
Industrial plug and socket2Set
Single tube LED light1Set
Special socket for air conditioner1Set
Light switch1Set
Roof load≥50kg/m²
Floor load bearing≥150kg/m²
Aisle bearing capacity≥200kg/m²
Wall side pressure≥80kg/m²
Fire ratingClass A fire protection
Wall deformation coefficient≤300kg/m²
Earthquake resistanceGrade 10
Wind resistanceLevel 10

Project Cases

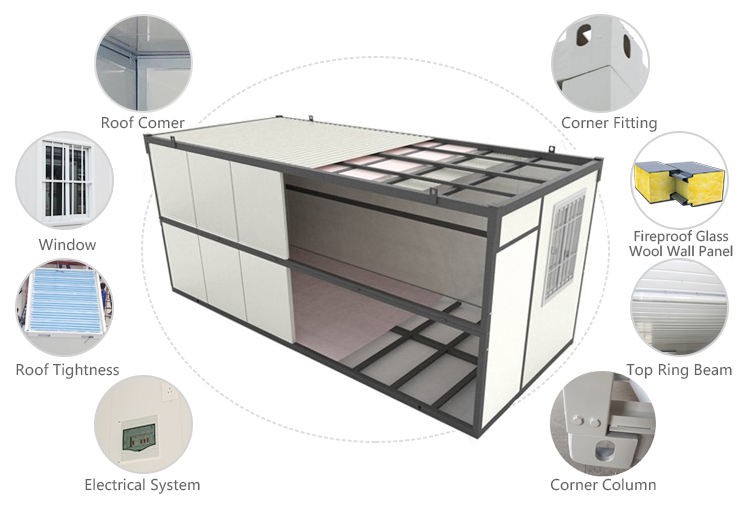

A folding container house in a residential setting

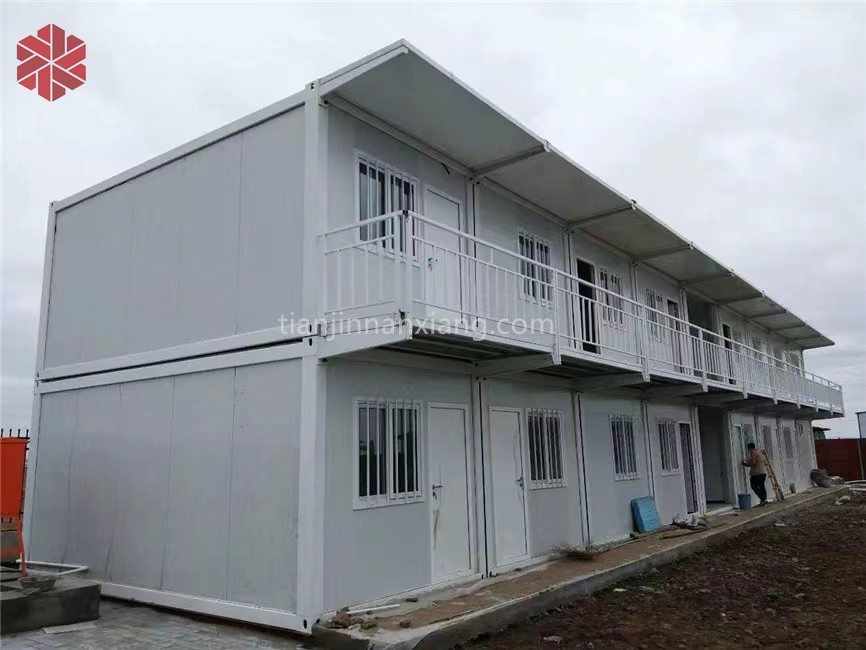

A folding container house used as a small office

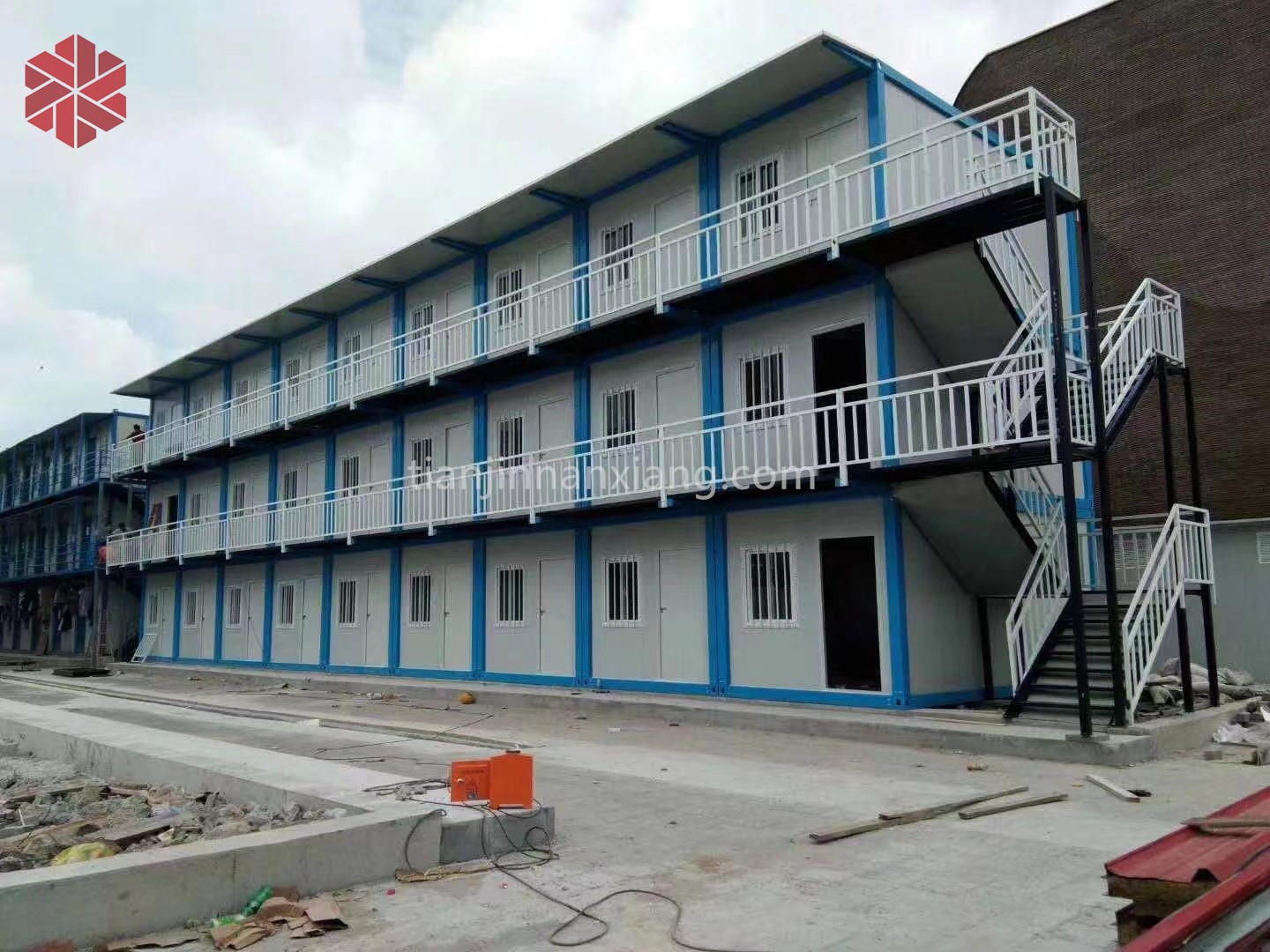

A row of folding container houses used for a camp

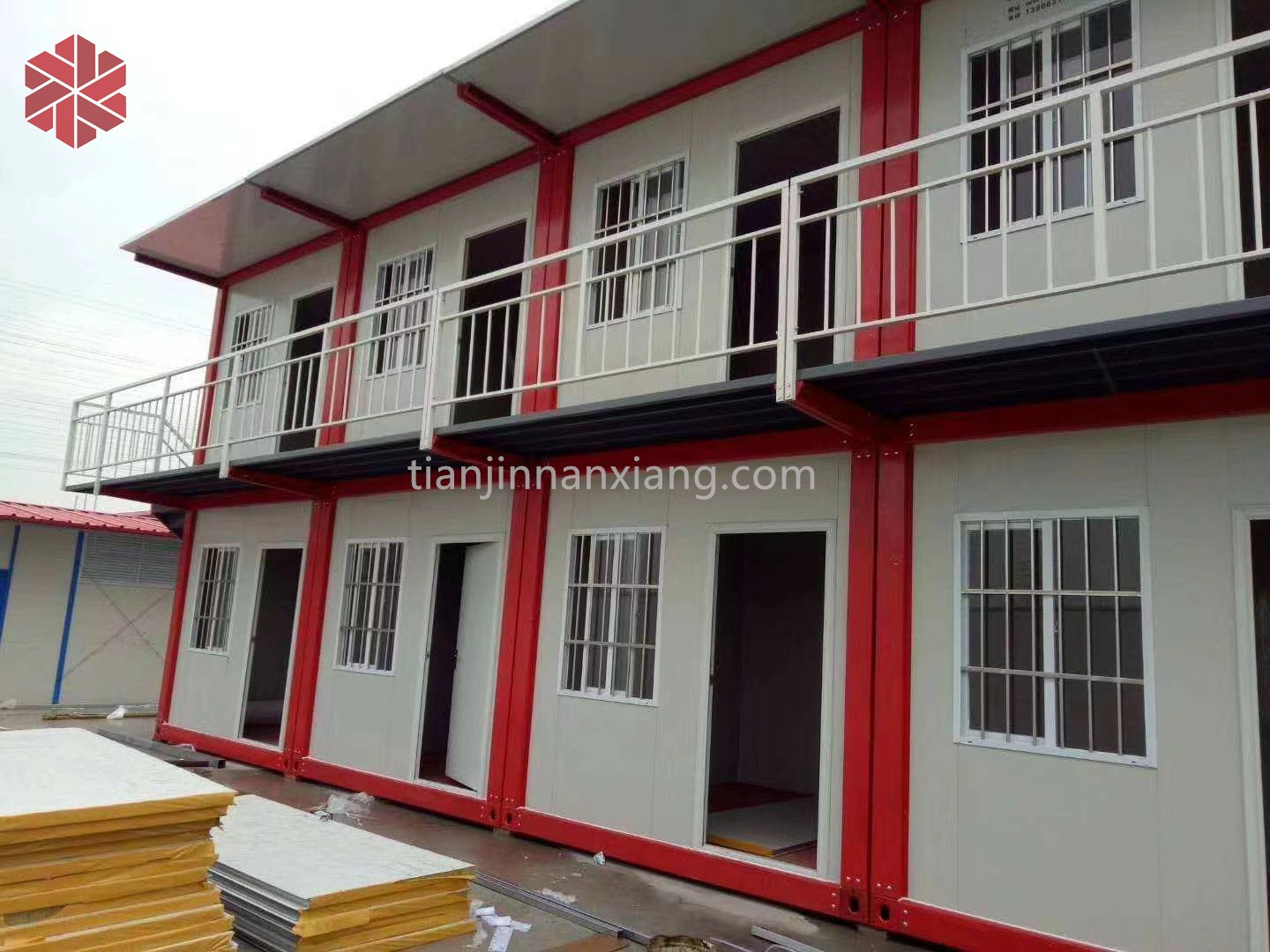

Another example of a folding container house camp
