Overview
A prefab flat-packed container camping house is a mobile and pre-manufactured unit designed for use as a tiny home, camping shelter, or temporary dwelling. It is constructed from steel and delivered in flat-pack form, making transportation and on-site assembly efficient.
The assembly process is straightforward, with components bolted together on-site. After assembly, the unit can be equipped with windows, doors, and utilities. Its portability makes it an excellent choice for those seeking a flexible and cost-effective housing solution.
Features
- Factory-built for consistent quality and faster construction time
- Customizable layouts to suit specific needs
- Durable and low maintenance
- Compact 20-foot size ideal for transport and varied terrains
- Affordable and sustainable housing solution

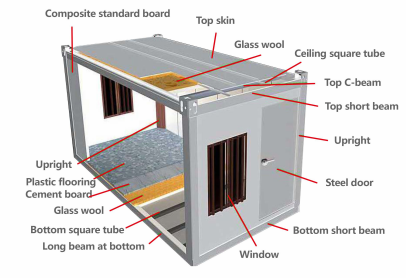

Specifications
| Parameter | Details |
|---|---|
| External dimensions (L×W×H) | 5800×2438×2550mm |
| Internal dimensions (L×W×H) | 5660×2180×2310mm |
| Package dimensions (L×W×H) | 5800×2438×710mm |
| Top frame | 2.5mm galvanized beam, 80g/㎡, 170mm×5380mm / 2118mm; Square tube: 30×30×1.0mm (×2), 20×20×1.0mm (×1) |
| Bottom frame | 2.5mm galvanized beam, 80g/㎡, 160mm×5380mm / 2118mm; Integrated trough: 5630mm / 2690mm |
| Main frame | 2.5mm galvanized corners; 3.5mm bottom corners (210×150×160mm), 80g/㎡ |
| Roofing | 0.45mm color steel single tile, 360° joint, waterproof design |
| Insulation | Top: 75mm glass wool (14kg/m³) |
| Color | Baking paint (electrostatic spraying) |
| Fasteners | Galvanized inner hex bolts |
| Drainage | Ø50mm downspout |

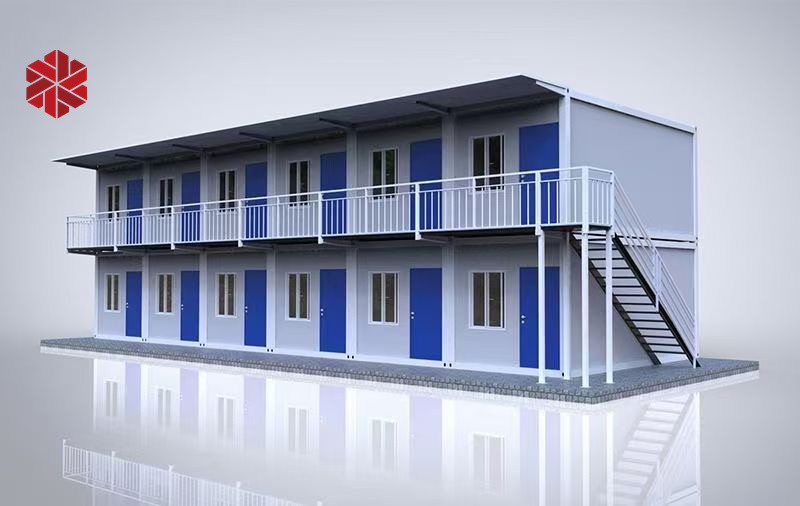

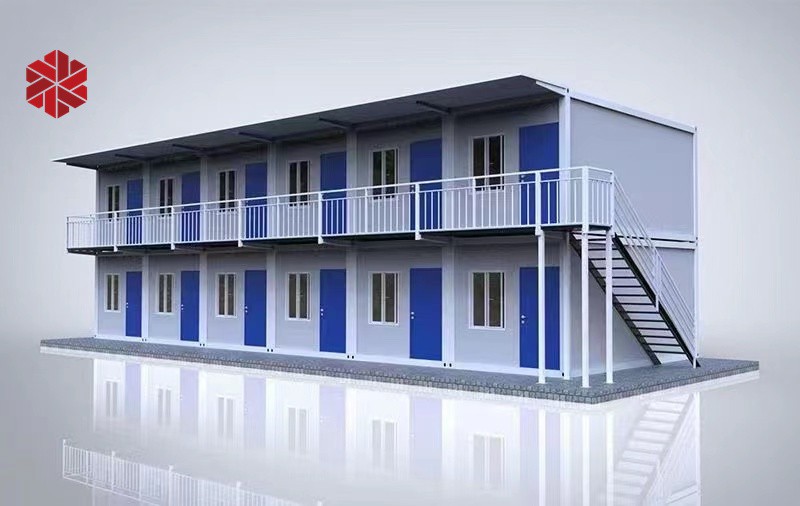

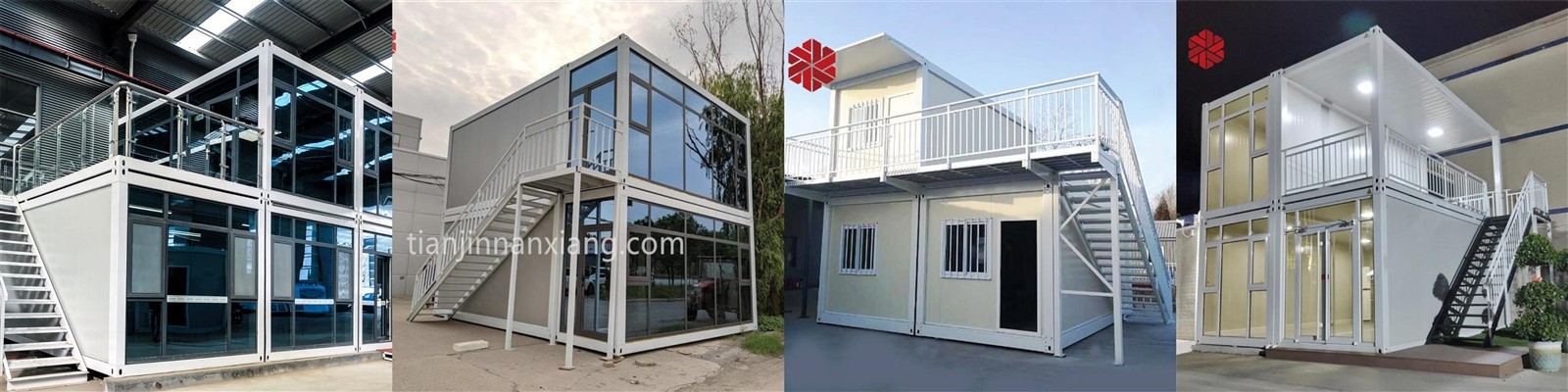

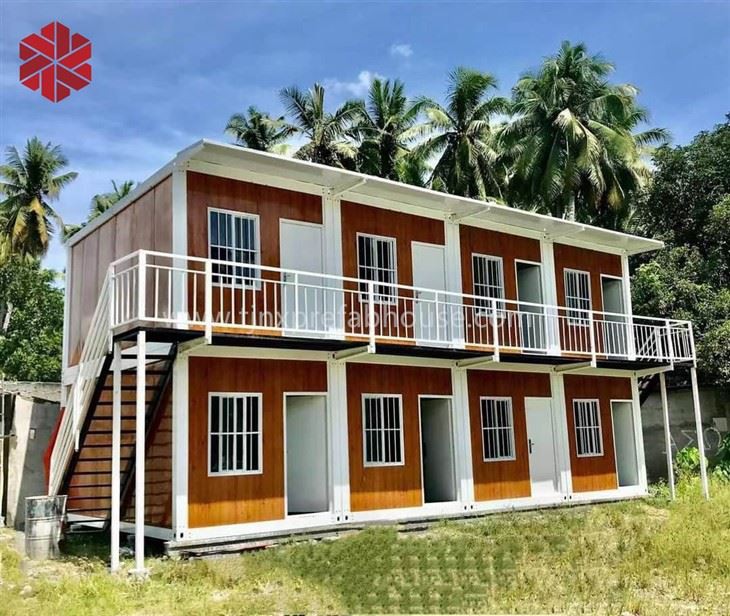

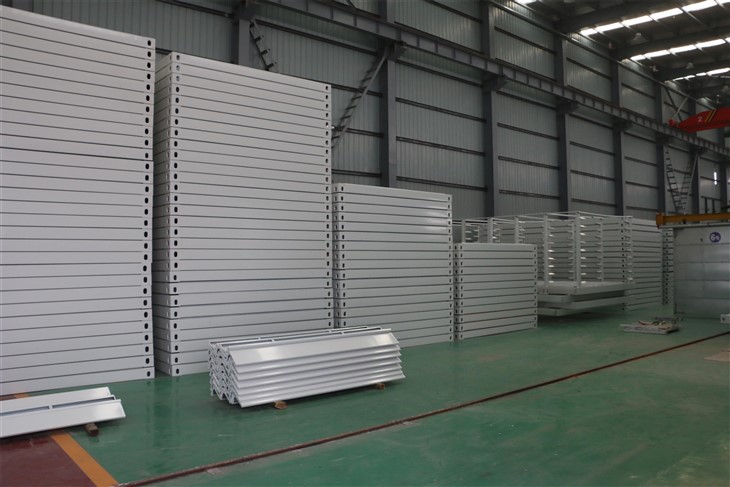

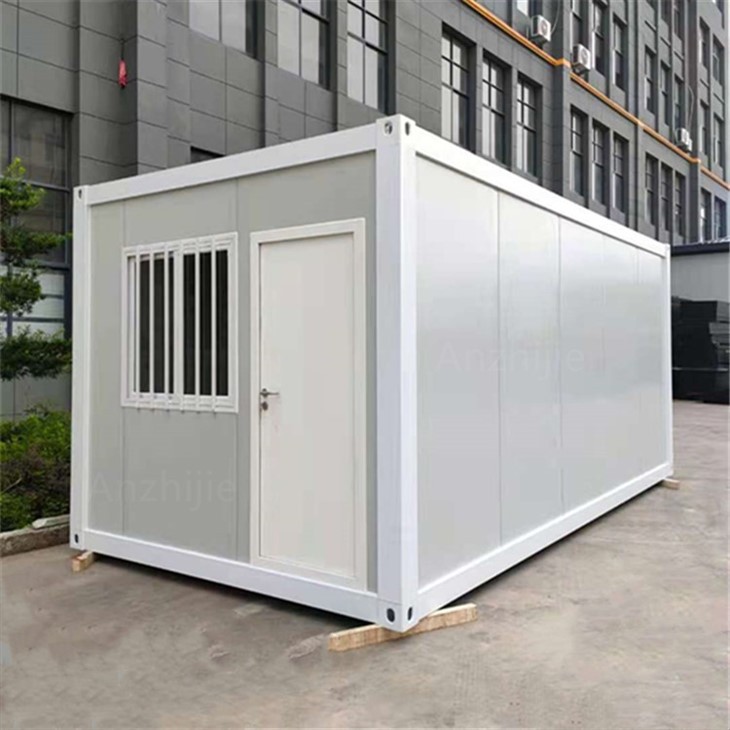

Gallery

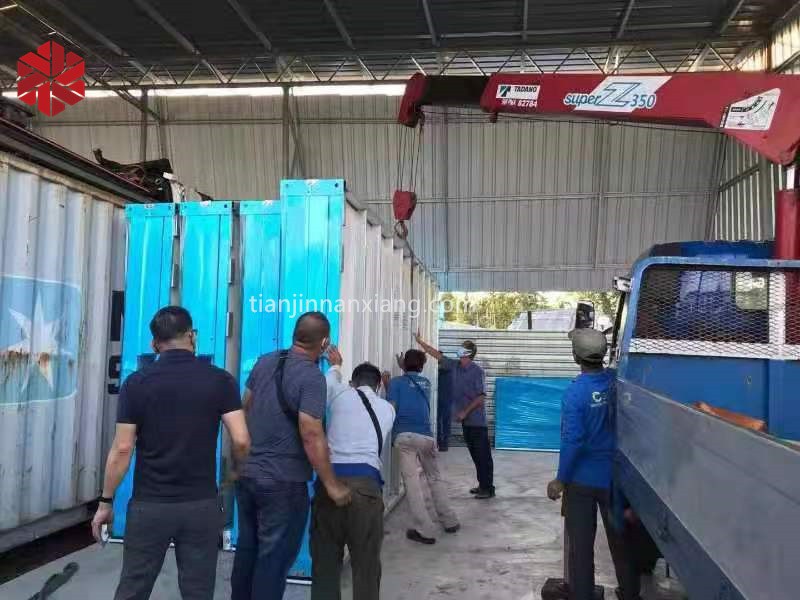

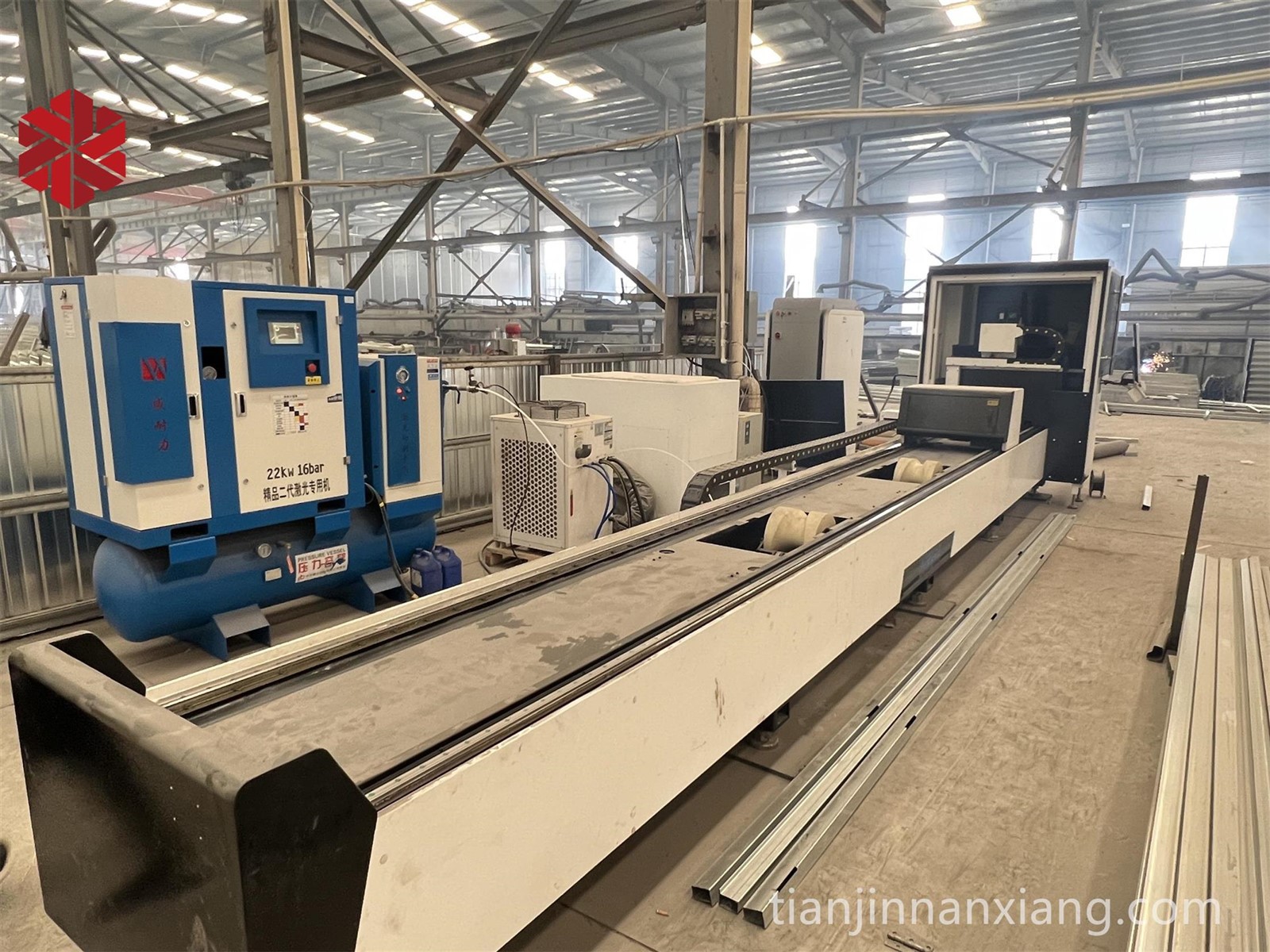

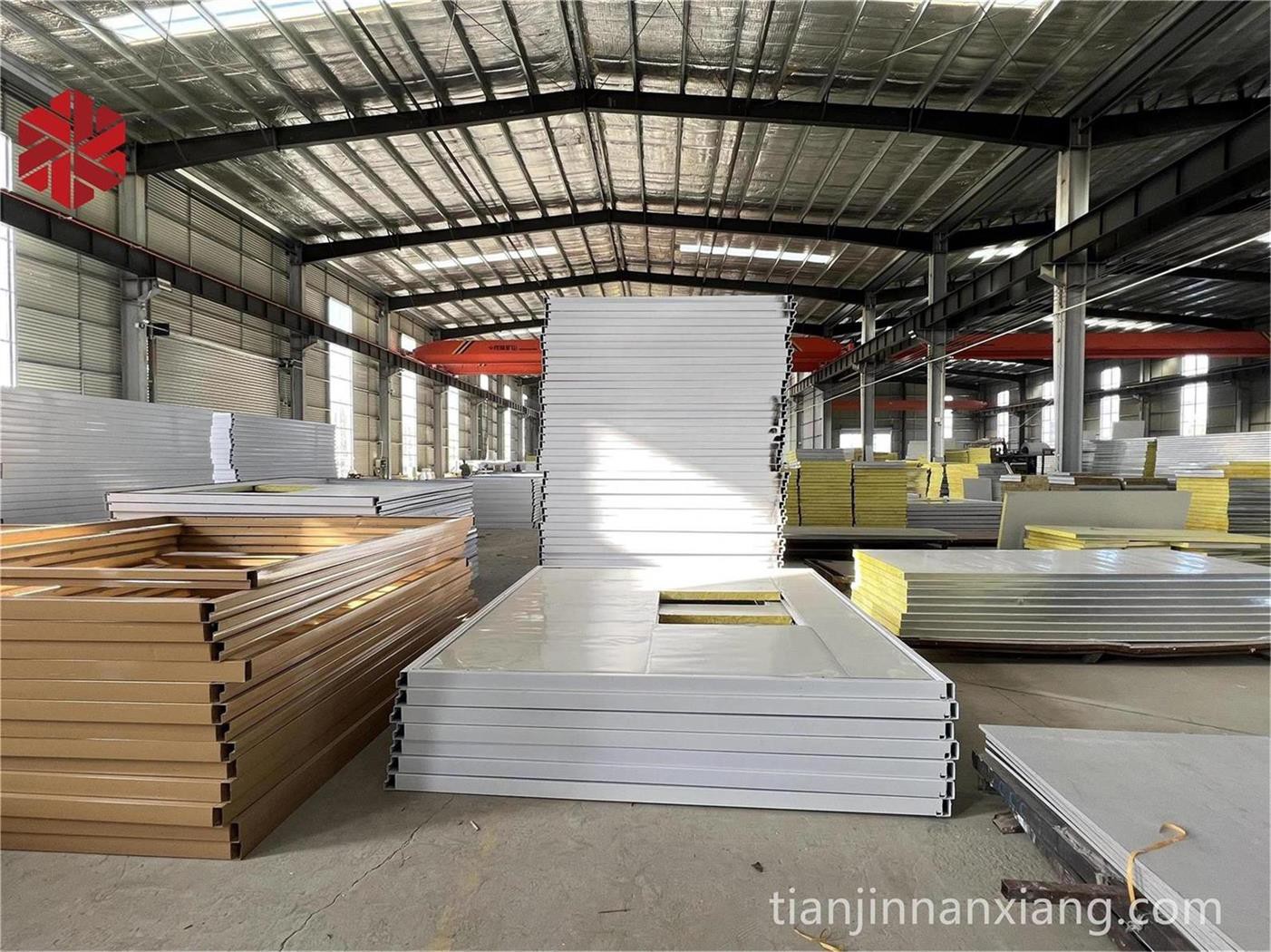

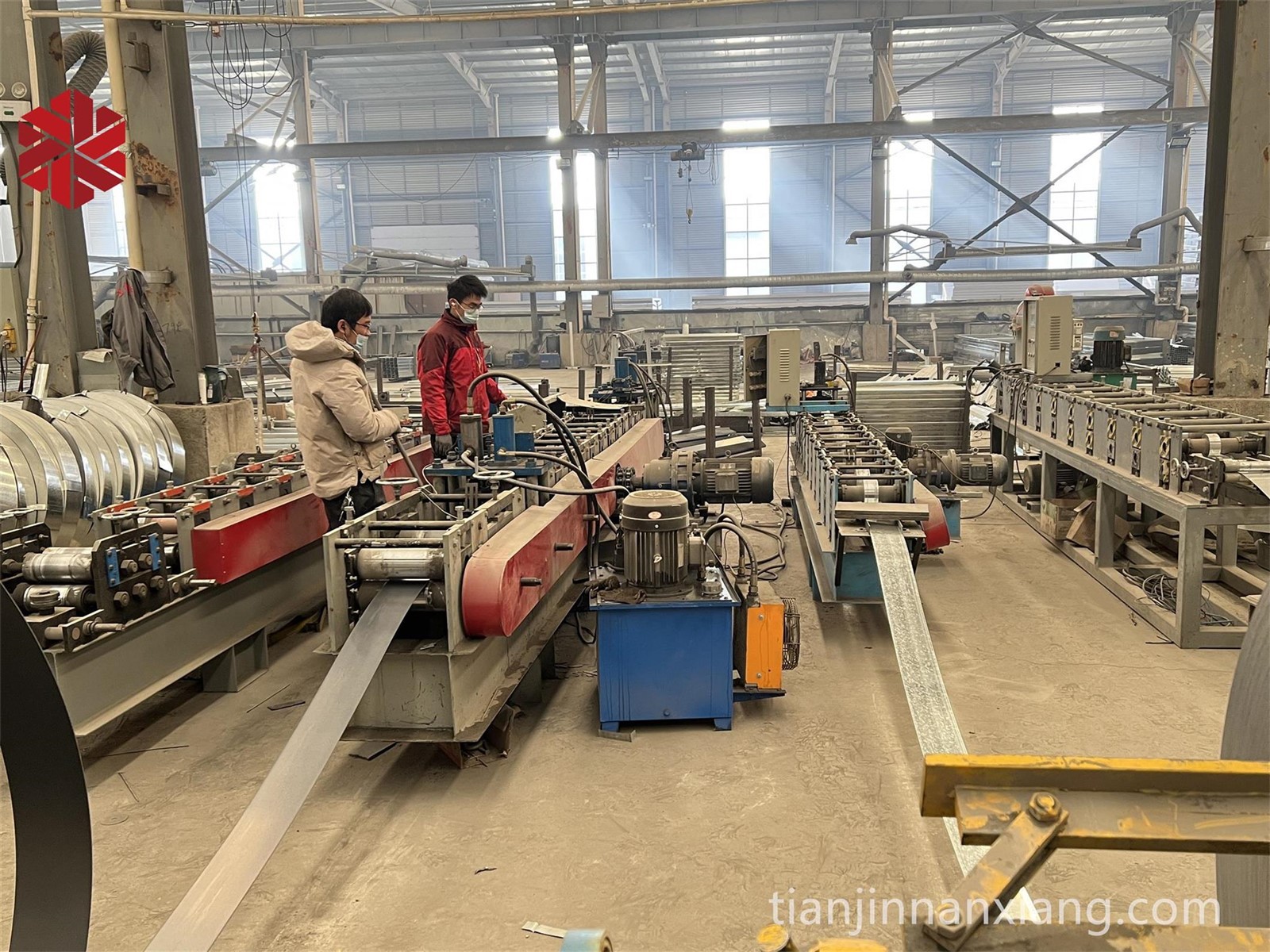

Factory Tour
