Overview

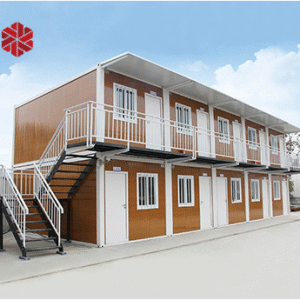

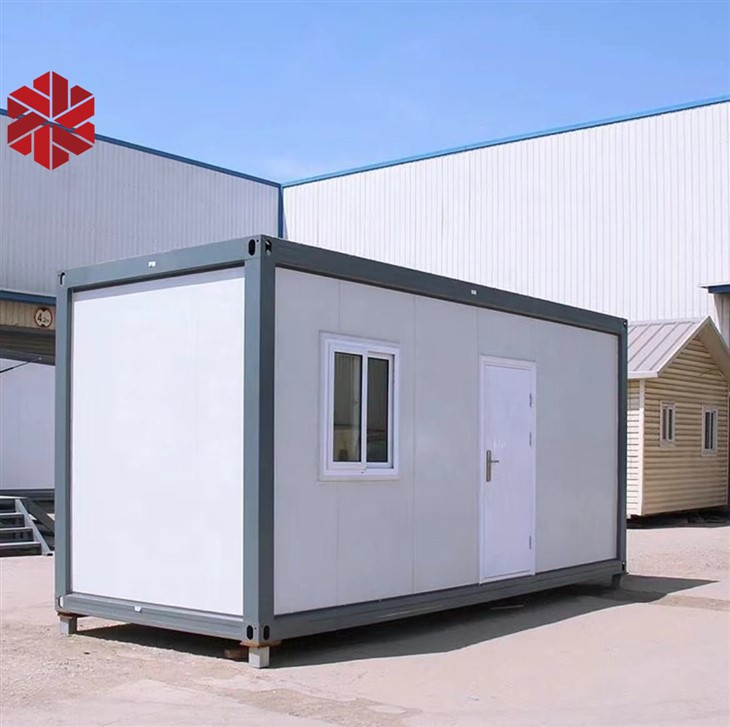

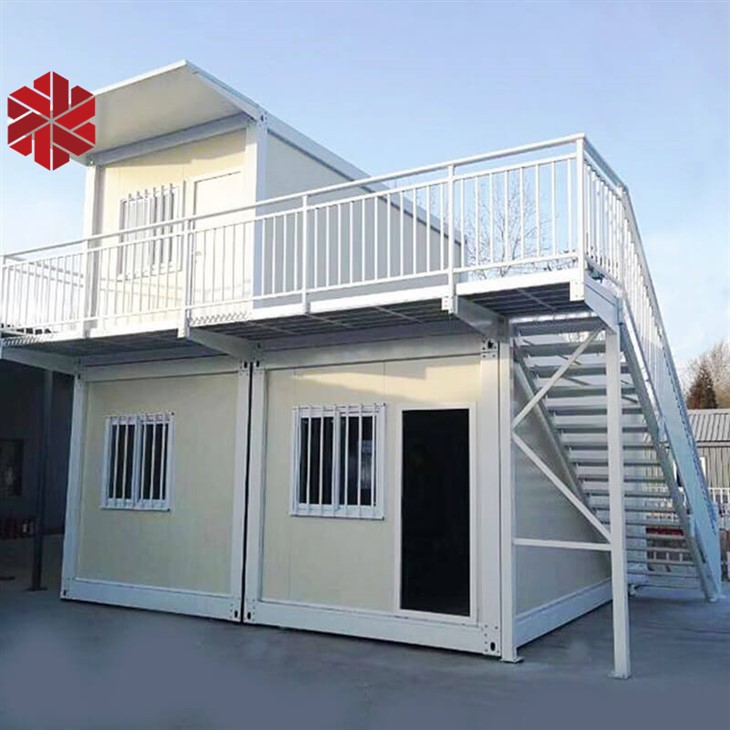

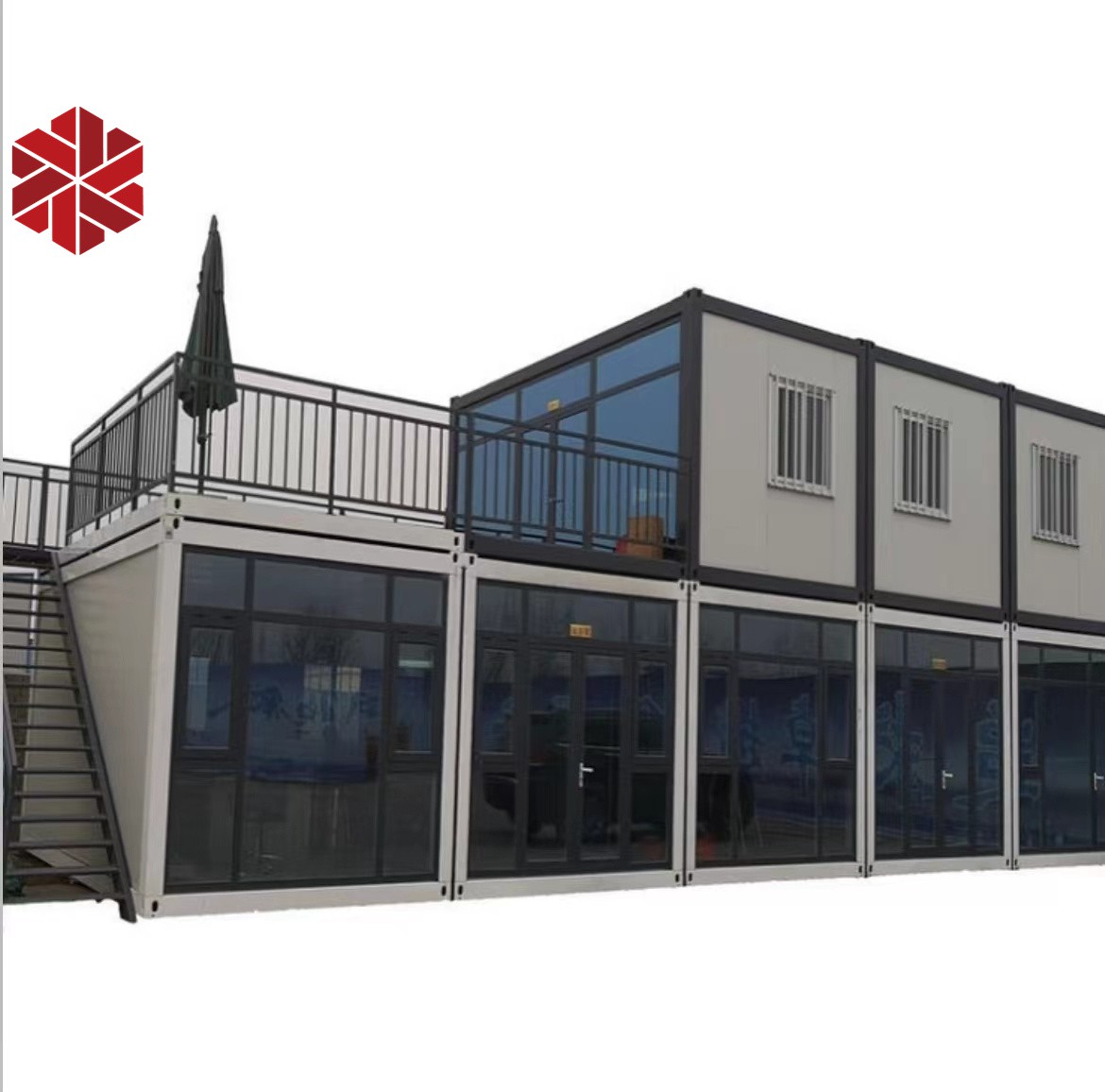

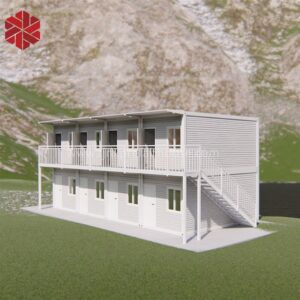

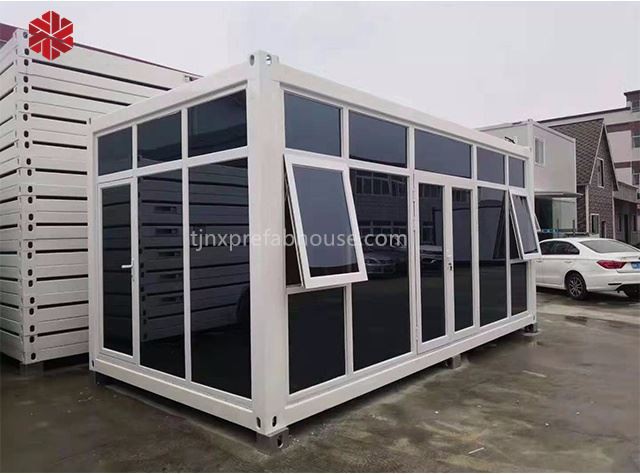

Flat Pack Container Prefabricated Houses are designed for efficient transport and assembly, making them ideal for disaster relief, remote worksites, or cost-effective housing solutions. These units support customization with options for bedrooms, kitchens, bathrooms, and living spaces, and they can be stacked or combined into larger multi-story buildings.
Specification
| Component | Specification |
|---|---|
| External Dimensions (L×W×H) | 5800×2438×2550 mm |
| Internal Dimensions (L×W×H) | 5660×2180×2310 mm |
| Package Dimensions (L×W×H) | 5800×2438×710 mm |
| Top Frame Beam (Long) | 2.5 mm galvanized, 80g/㎡, 170 mm wide, 5380 mm length |
| Top Frame Beam (Short) | 2.5 mm galvanized, 80g/㎡, 170 mm wide, 2118 mm length |
| Top Frame Cross Brace | Galvanized C80×1.2 mm, 80g/㎡ |
| Bottom Frame Beam (Long) | 2.5 mm galvanized, 80g/㎡, 160 mm wide, 5380 mm length |
| Bottom Frame Beam (Short) | 2.5 mm galvanized, 80g/㎡, 160 mm wide, 2118 mm length |
| Bottom Frame Steel Profile | 1.2 m |
| Wall Panel Bottom Trough | Integrated flooding and edging, 5630 mm / 2690 mm |
| Galvanized Column | 2.5 mm, 80g/㎡, 210 mm wide, 150 mm wide, 2180 mm high |

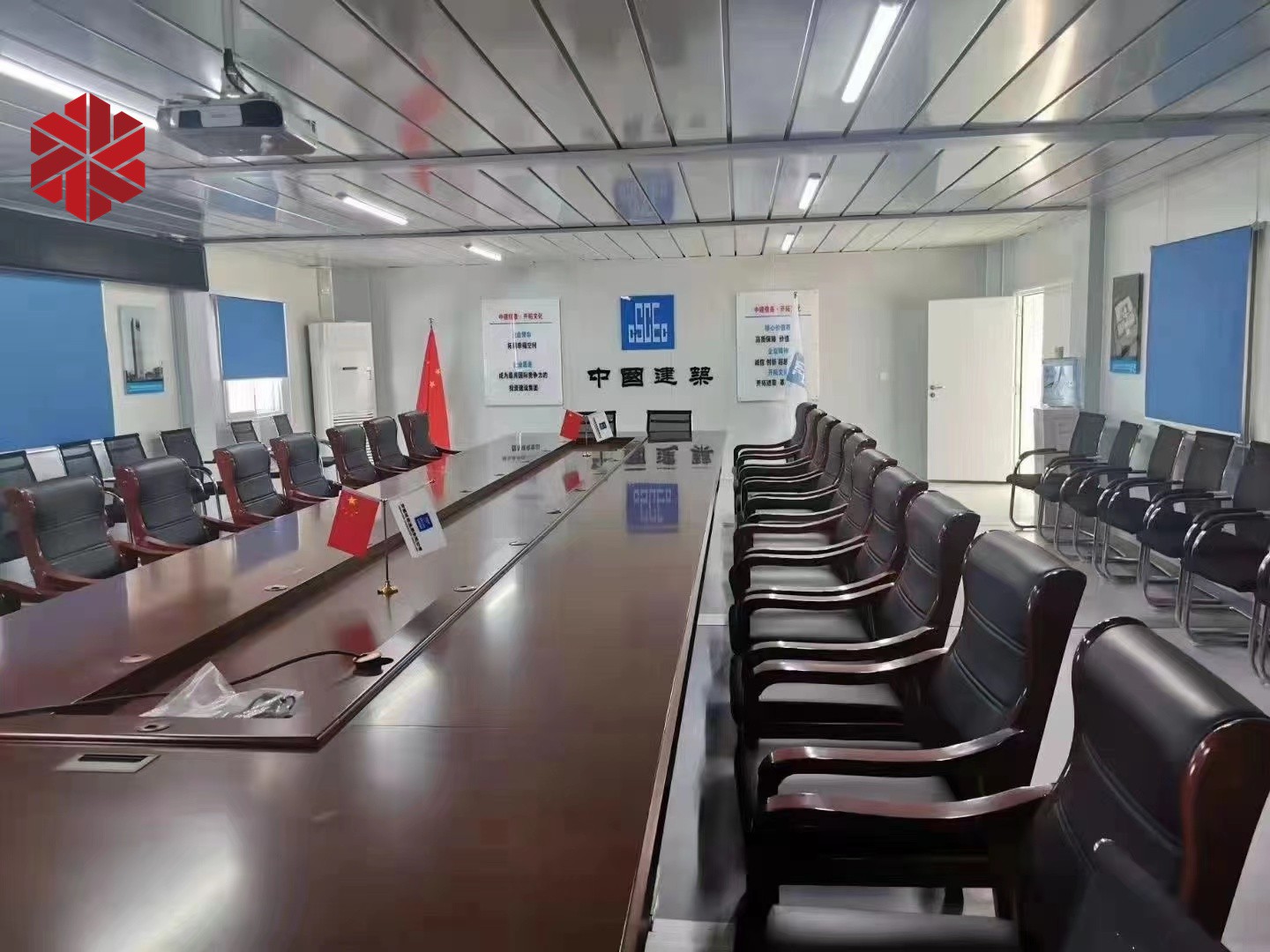

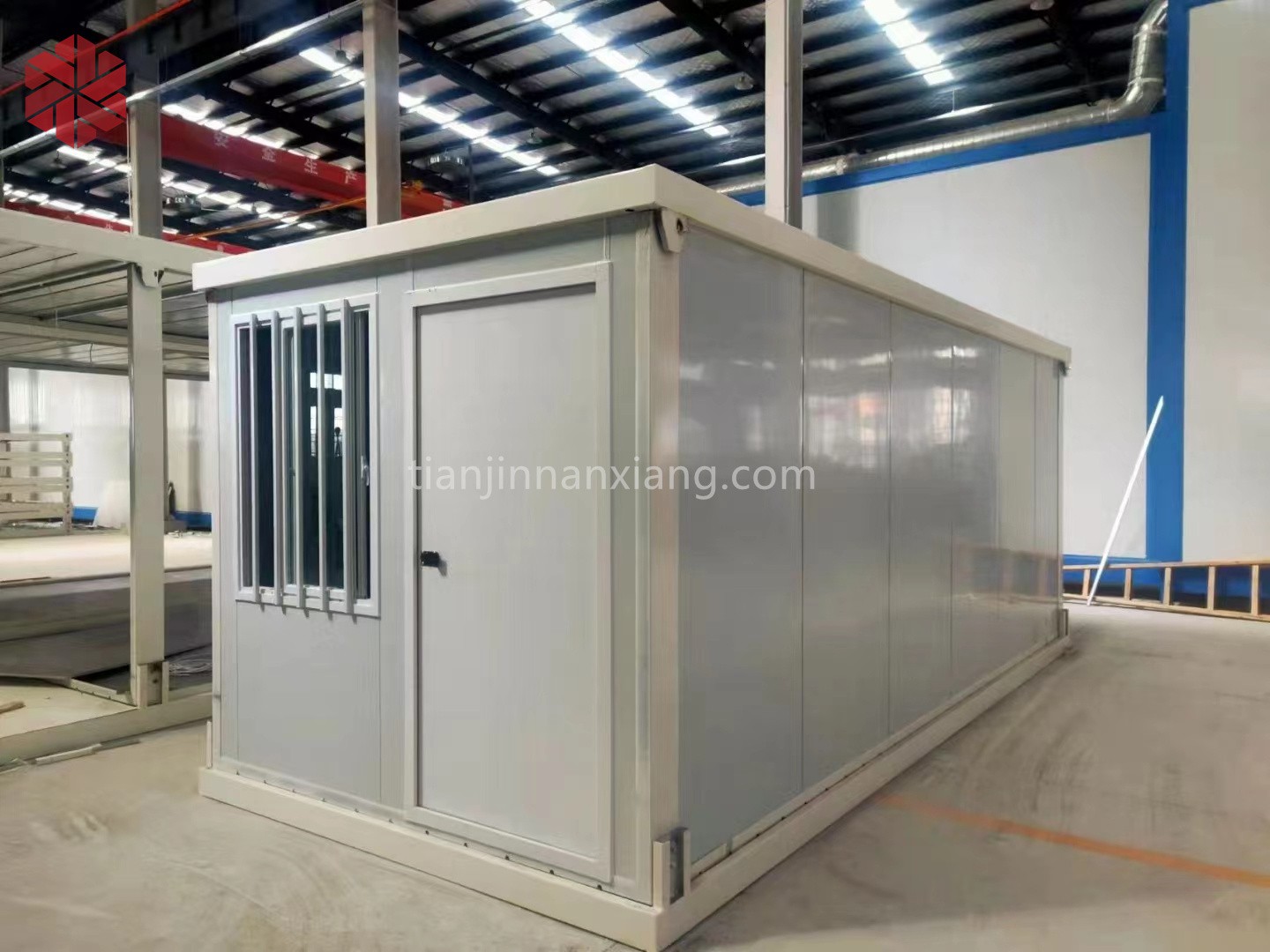

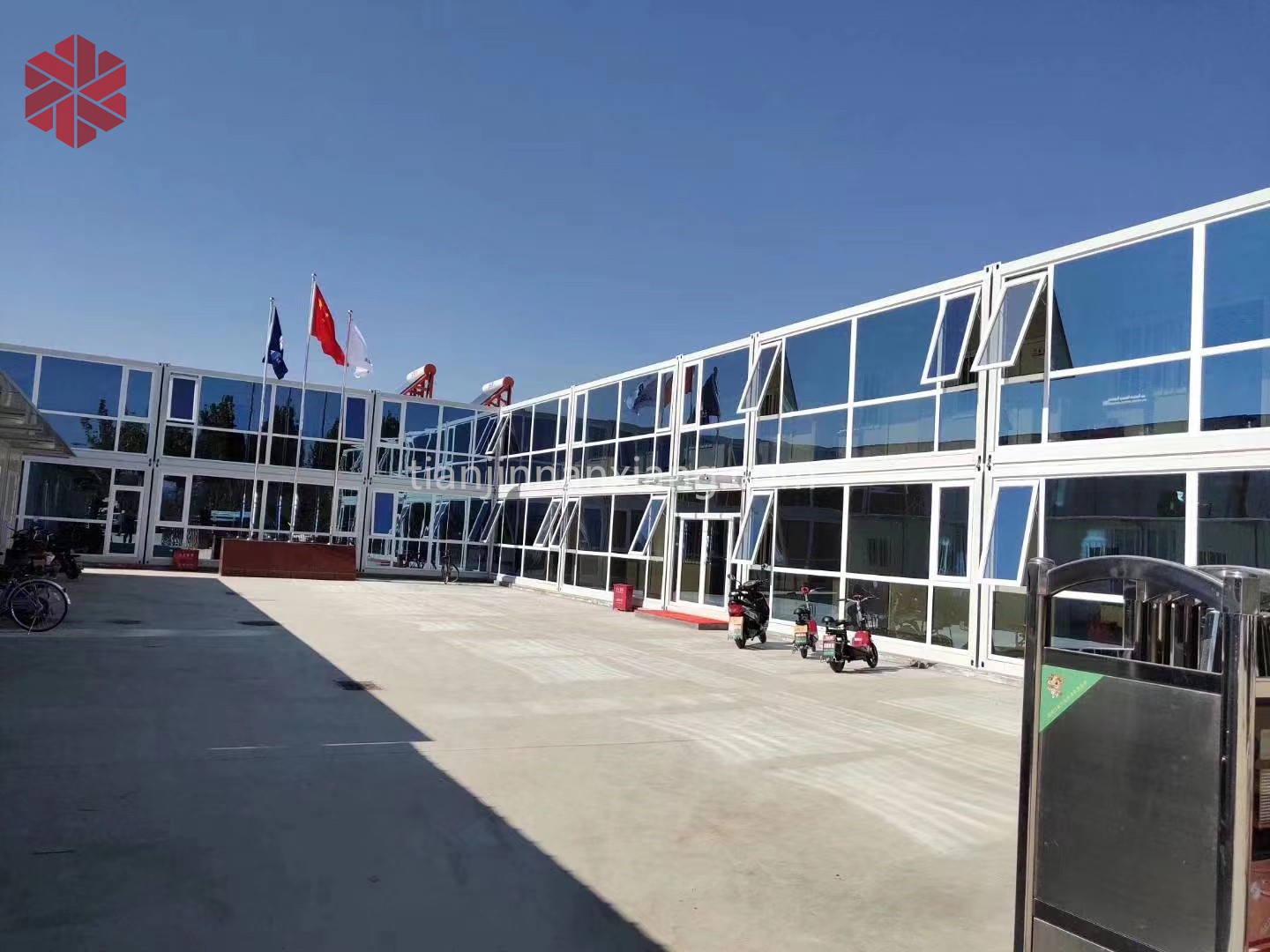

Factory Tour
Advantages
- No rain leakage
- Rust-proof design
- Long service life
- Reliable service and support
Exported folding container houses offer key benefits:
- Quick to assemble and dismantle, making relocation simple.
- Cost-efficient compared to traditional construction methods.
- Energy-saving features such as insulation and efficient lighting.
- Highly customizable in layout and design.
Market Applications
- Disaster response housing
- Remote and off-grid accommodations
- Temporary housing for worksites or events
- Unique lodging experiences for tourism
Flat Pack Container House Export
- Choose durable materials that can withstand moisture, temperature, and impact. Ensure proper box sizing for safe transport.
- Use cushioning like foam or bubble wrap. Label the packaging with shipping information and handling instructions.
- Follow international packaging standards to comply with destination country regulations and reduce transit damage.
- Research and adhere to customs requirements for the exported goods in the target country.

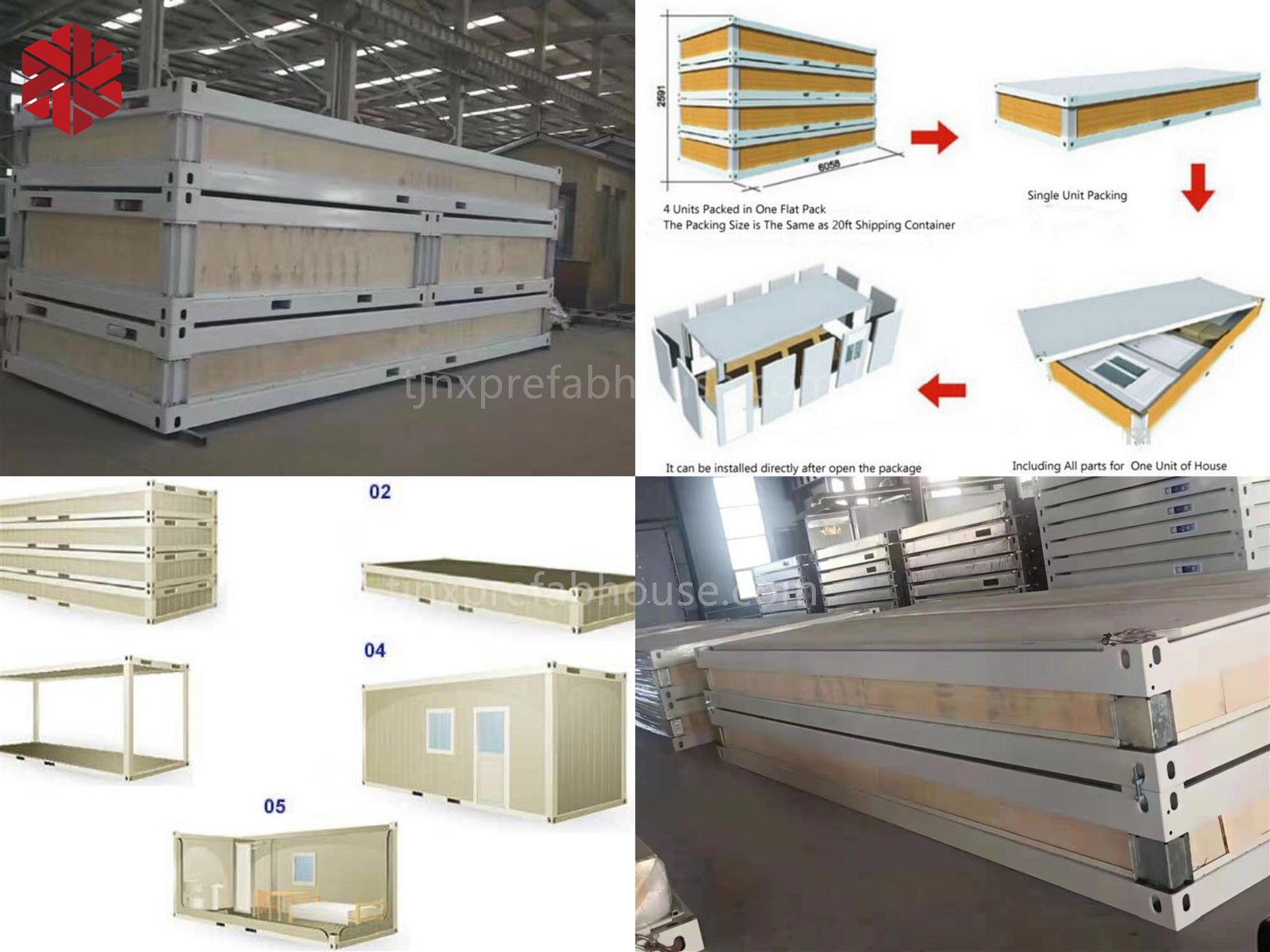

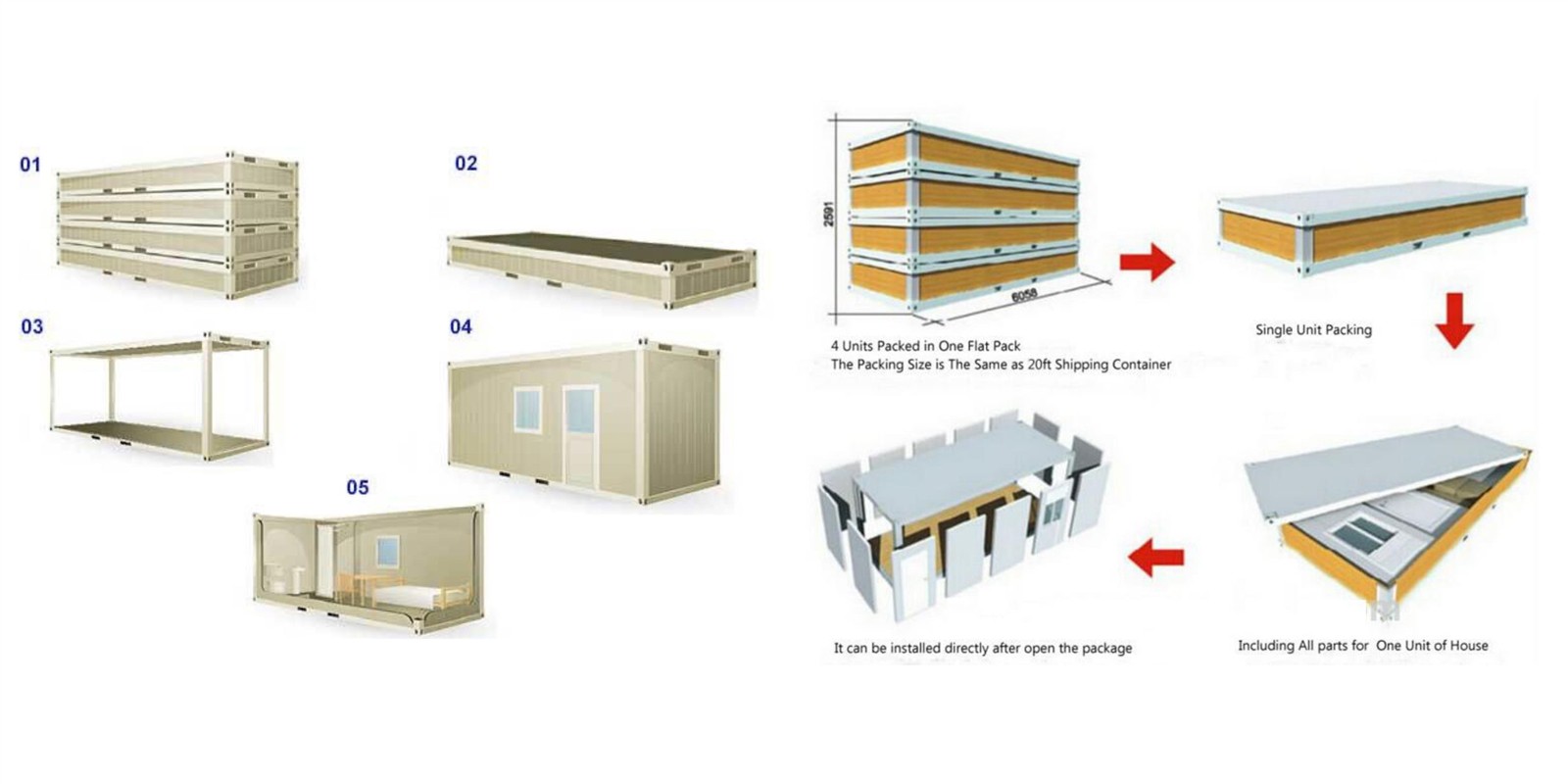

Packing and Shipping
