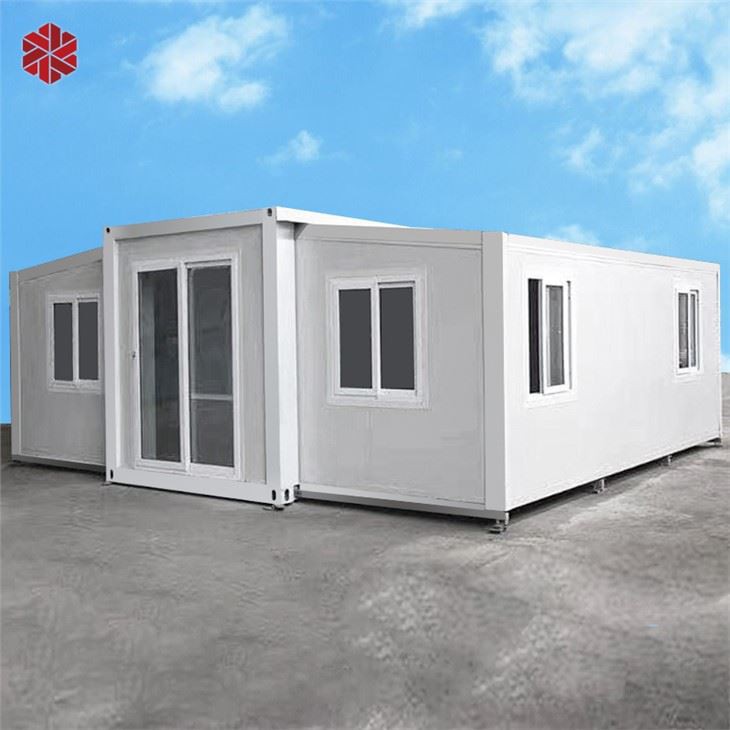

Expandable Prefab Homes
The Expandable Prefab Homes are a revolution in housing, offering a unique, affordable, and highly customizable approach. These homes are built with high-quality materials and technology to meet the needs of the modern homeowner, from simple prefab houses and luxury villas to offices or holiday homes. Compared to traditional building models, these homes can be quickly installed and are ready for use immediately. The construction process is very energy-saving and environmentally friendly, as it does not generate a large amount of waste, and most materials can be recycled. The solid steel structure enhances the stability, thereby improving seismic and wind resistance.
Main Advantages
- Versatile and Customizable Design: The modular design allows for customization to meet specific needs and preferences. With a standardized set of modules, the buildings can be easily adapted to various dimensions, shapes, and styles.
- Easy Assembly and Installation: Homes are prefabricated in a factory and can be assembled quickly and easily on-site, saving time and minimizing disruption.
- Cost-Effective and Economical: These homes are less expensive to build than traditional construction, offering more flexibility in design and renovation. The efficient modular process reduces waste and labor costs.
- Environmentally Friendly and Sustainable: The use of eco-friendly materials and green energy sources like solar panels minimizes the carbon footprint and promotes sustainability. Most materials are reusable and recyclable.
- High-Quality and Reliable: The homes are built with high-quality, durable materials like lightweight steel framing, providing excellent resistance to wear, weather, and natural disasters.
- Easy Transportation: The homes can be compactly folded to the standard size of a shipping container, making them easy to transport by truck, ship, or rail.
- Quality Assurance: Made with quality materials and a rigorous production process, ensuring long-lasting durability, moisture resistance, and thermal insulation.
Technical Specifications
| Item | Specification | |
|---|---|---|
| Standard Dimensions (L x W x H) | 5800mm x 6300mm x 2500mm | |
| Packing Size (L x W x H) | 5800mm x 2250mm x 2500mm | |
| Frame Structure | 2.0mm-4.0mm Cold formed profile steel/Square tube | |
| Decoration Primer Coat | Epoxy zinc-rich primer (two layers) | |
| Finishing Coat | Alkyd honed painting white color | |
| Roof | Bending steel plate | |
| Ceiling | 50mm color steel sandwich panel (or carved metal insulation board) | |
| Wall | 50mm color steel sandwich panel (or 75mm/10mm) | |
| Flooring | 15mm fiber cement board + 2mm PVC floor (or 12mm/18mm/20mm CCA + 10mm composite wood) | |
| Door | 50mm Metal composite door (glass woo/Phenolic Foam Board) | |
| Window | PVC glass sliding window (4mm thickness glass) | |
| Packing | Flat down packing | |
| Technical Parameter | ||
|---|---|---|
| Temperature Range | (-45°℃) to 50℃ | |
| Anti-seismic Grade | 8 | |
| Wind Resistance | 100km/h | |
| Floor Live Load | 2KN/m² | |
| Roof Live Load | 0.5KN/m² | |
| Life Span | More than 15 years | |

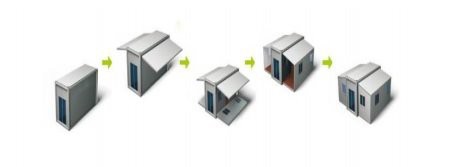

Easy Installation
Layout Options

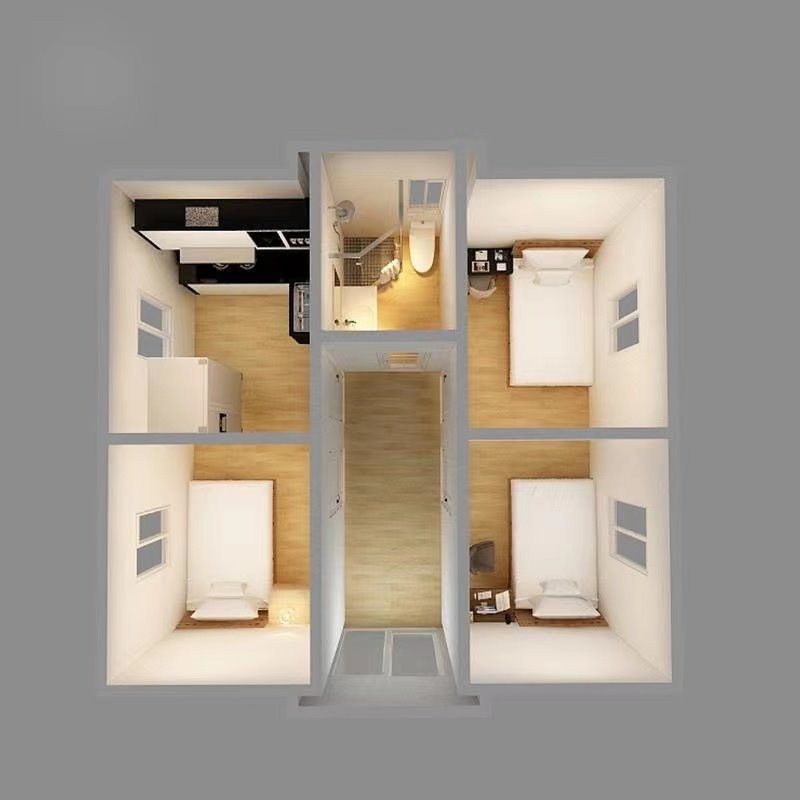

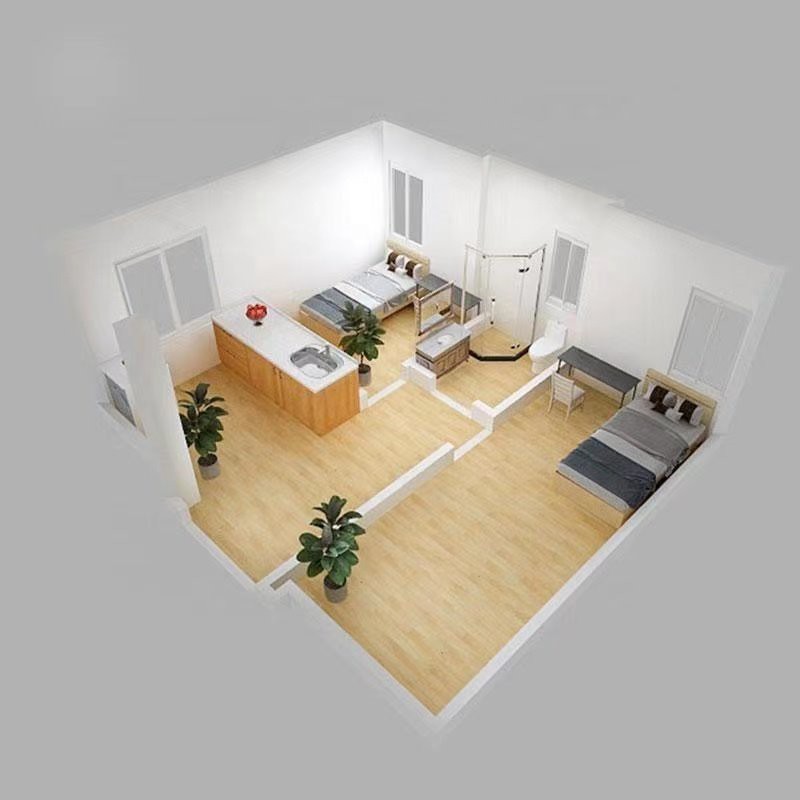

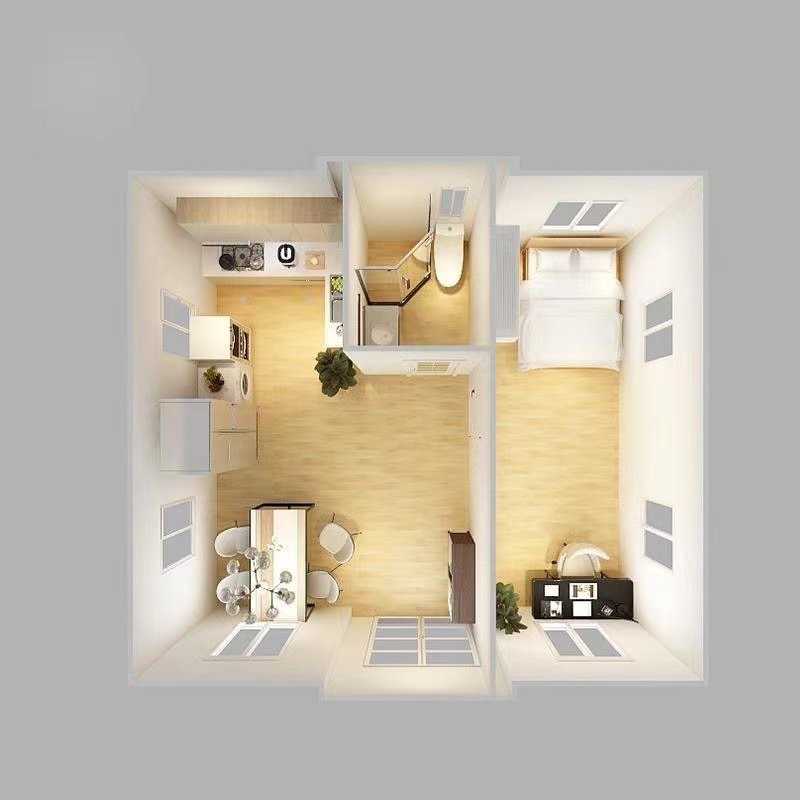

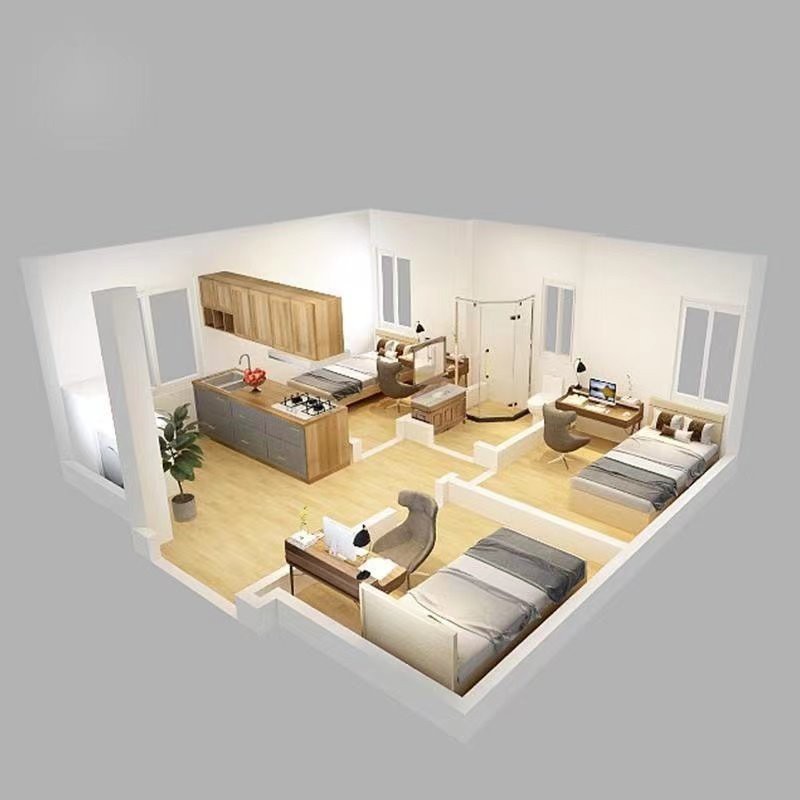

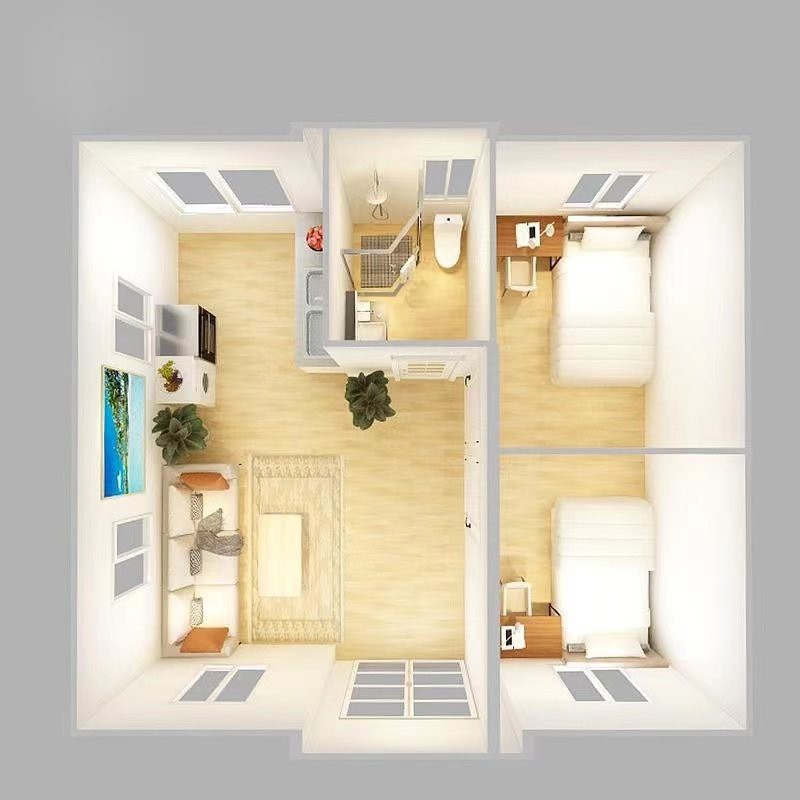

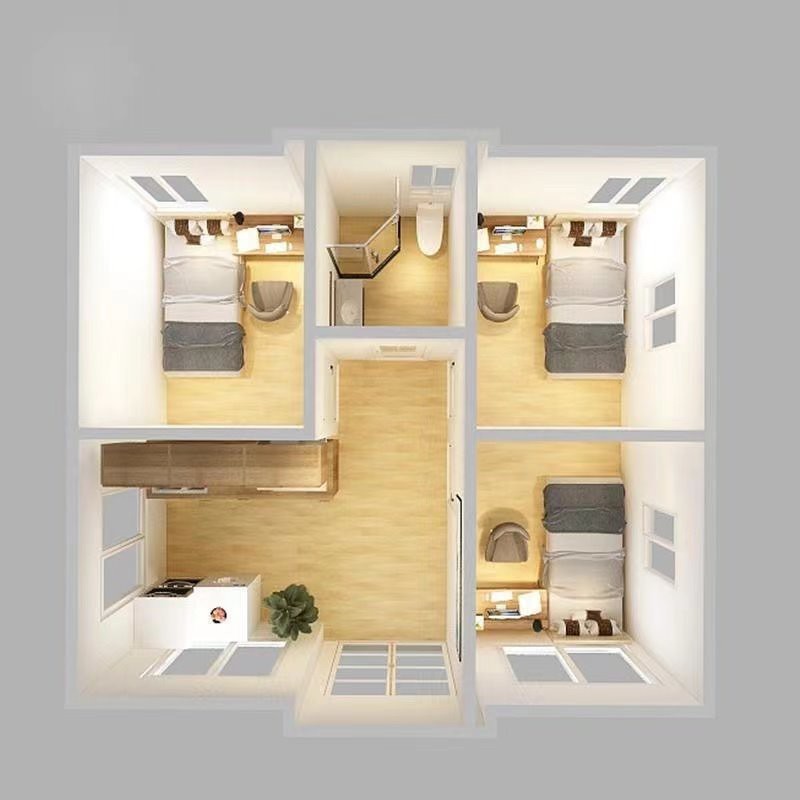

Internal layout:
If the above layout cannot meet your needs, please contact customer service to customize it for you.
In conclusion, the Expandable Prefab Homes offer a reliable, efficient, flexible, and affordable housing solution for different markets and countries around the world. These homes are versatile in design and construction, easy to assemble and install, cost-effective and economical, environmentally-friendly and sustainable, and of the highest quality. As a merchant, you can benefit greatly from these compelling features, attracting potential customers and satisfying their needs. We hope that you will consider the Expandable Prefab Homes as a valuable addition to your offerings, and we look forward to your continued support and partnership.
