Product Description

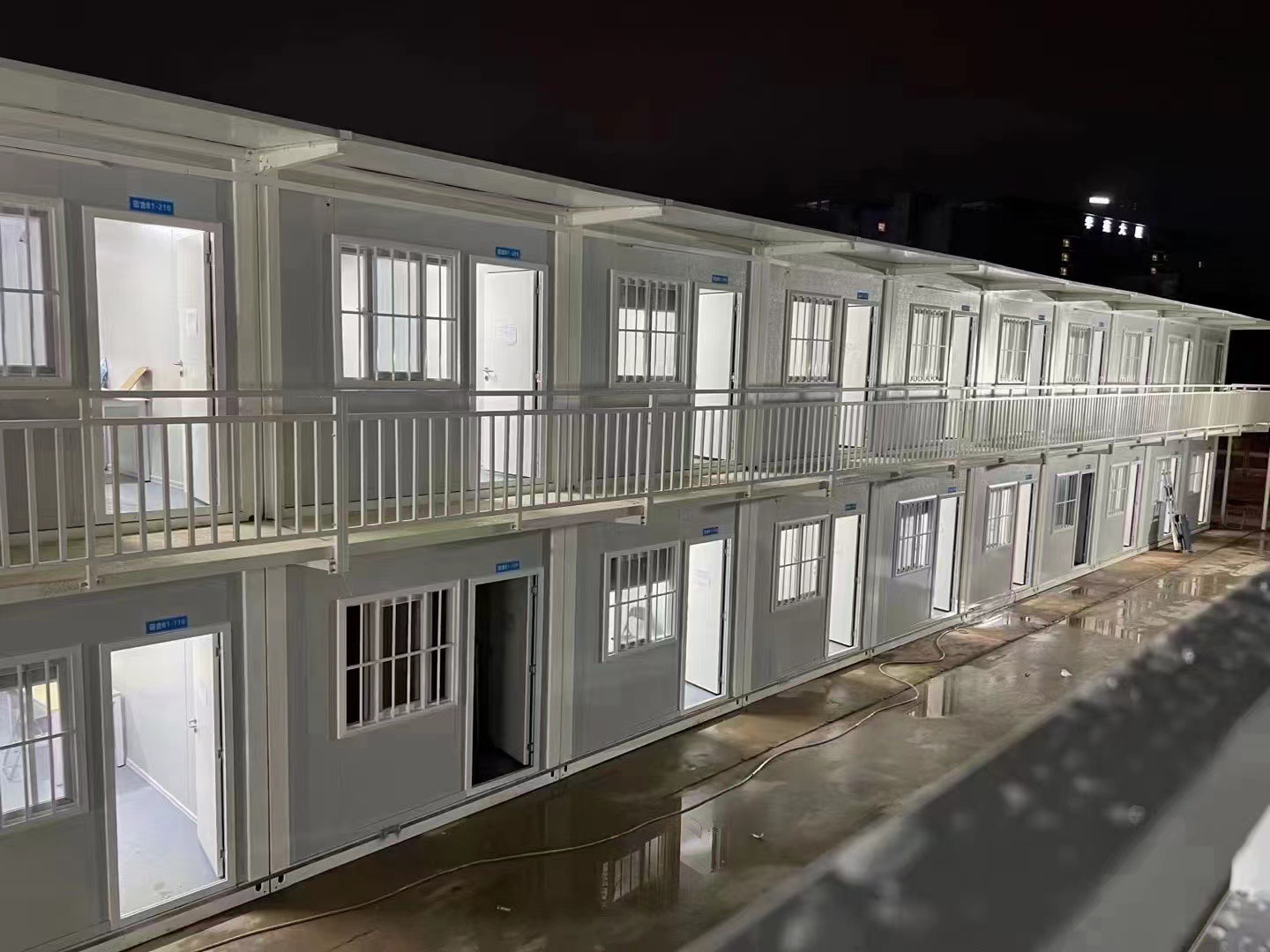

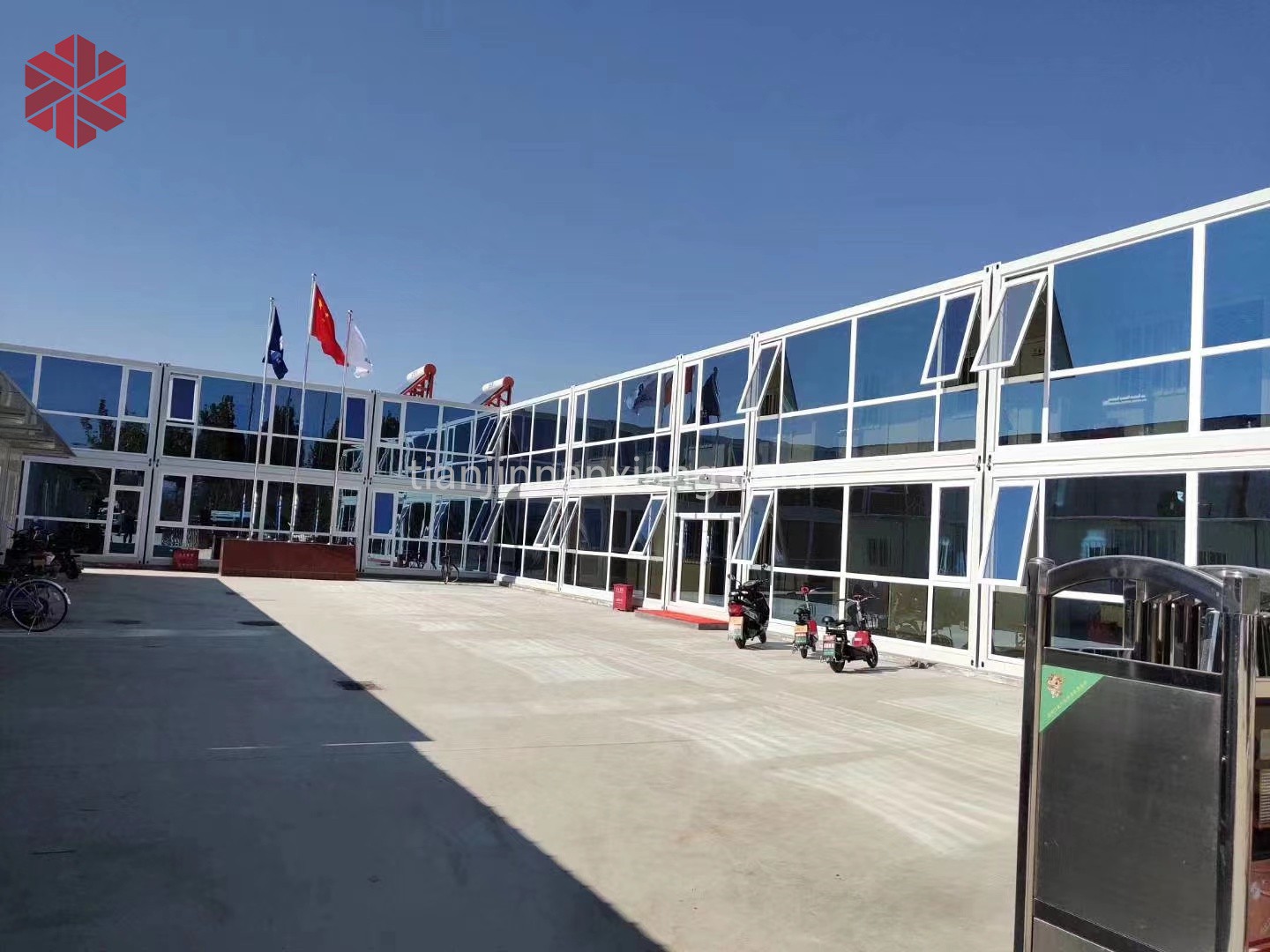

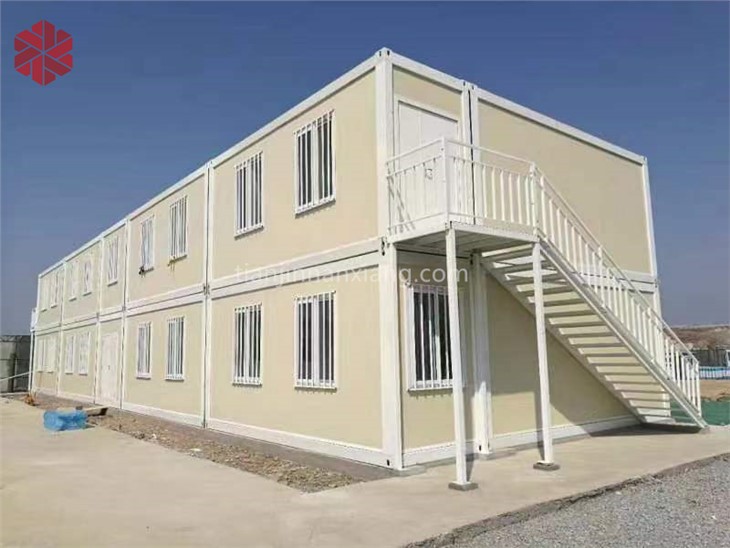

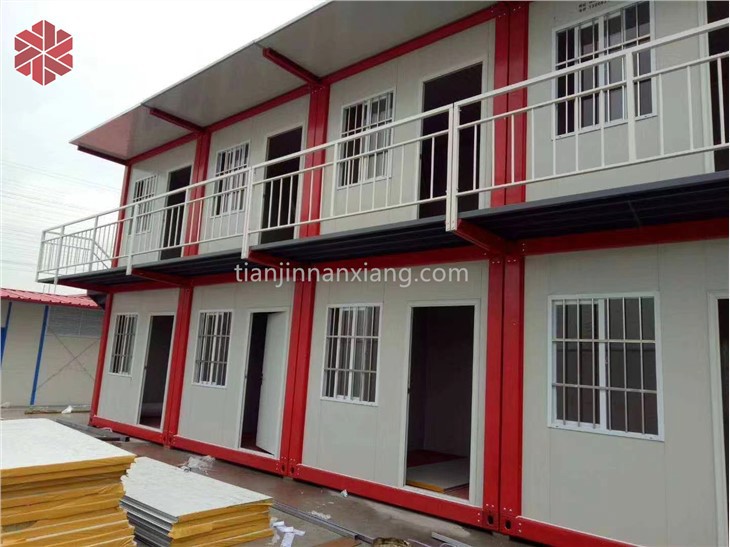

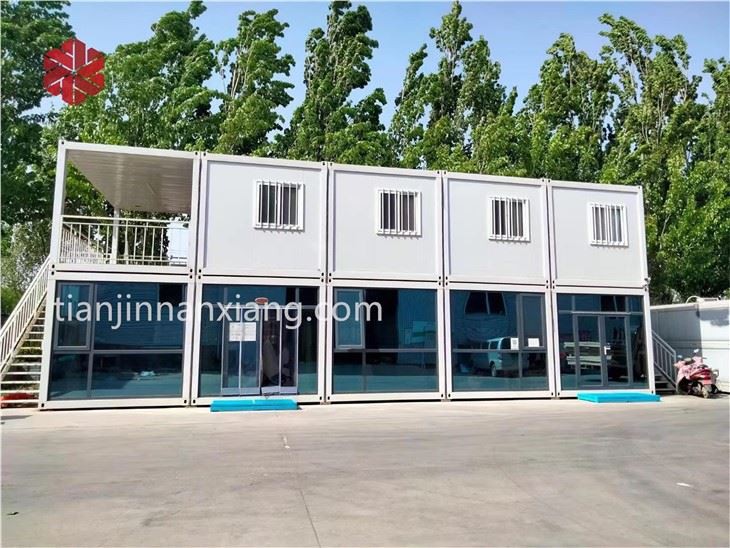

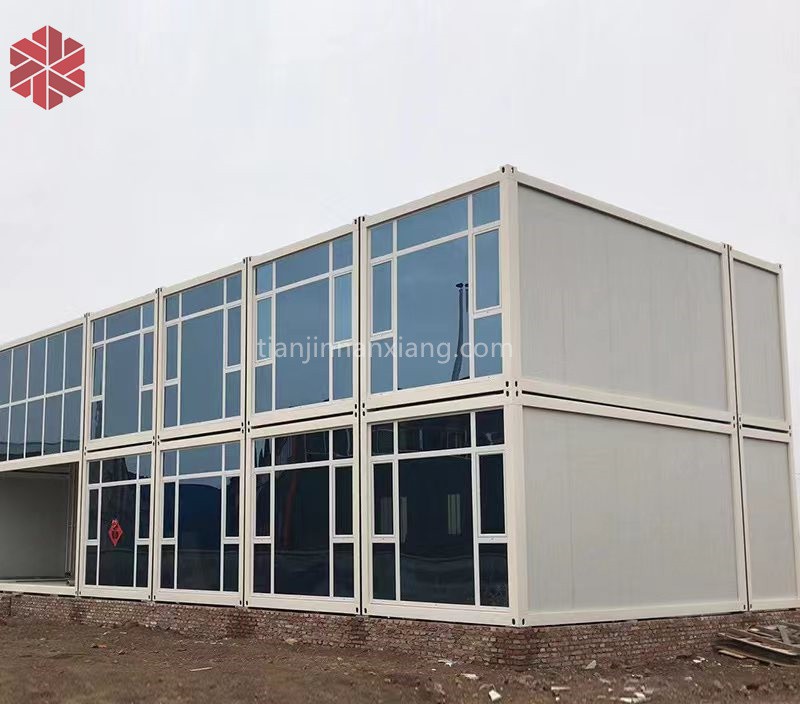

This container house is an innovative, cost-effective solution for providing affordable and comfortable accommodation for workers. It is designed to serve as a two-story worker dormitory, making efficient use of space. Made from high-quality, durable materials, the house features a sturdy steel frame and insulated wall panels for excellent thermal insulation. Large windows allow plenty of natural light inside.
The dormitory can be configured with a spacious living area on the ground floor and a comfortable sleeping area on the upper floor, complete with a fully equipped kitchen, bathroom, and toilet. This makes it a great solution for businesses that need to provide accommodation for their employees, especially in remote or rural locations.
Technical Specifications
The container house is made from high-quality, galvanized materials designed for longevity and structural integrity.
Frame Details
The frame is constructed with:
- Top Girder: Special shaped galvanized concave-convex pipe, 63mm x 80mm x 1.5mm (both sides)
- Bottom Girder: Special shaped galvanized concave-convex pipe, 63mm x 160mm x 2.0mm (both sides)
- Top Beam: Galvanized square pipe, 50mm x 50mm x 1.8mm
- Front & Rear End Girder: Special shaped galvanized concave-convex pipe, 63mm x 80mm x 1.5mm (both sides)
- Sidewall Frame: Special shaped galvanized concave-convex pipe, 63mm x 80mm x 1.5mm (both sides)
- Bottom Crossbeam: Galvanized square steel pipe, 40mm x 80mm x 2.0mm
Parameters
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| External size | 5800mm x 2500mm x 2450mm | Weight | 1.3 MT |
| Internal size | 5650mm x 2350mm x 2230mm | Roof load | ≥50kg/m² |

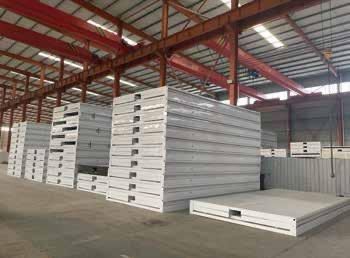

| Folding size | 5800mm x 2500mm x 400mm | Floor load bearing | ≥150kg/m² |
| Wind resistance | Level 10 | Fire rating | Class A |
| Earthquake resistance | 10 degree | Floor | Grade A fireproof glass magnesium plate |
| Wall deformation coefficient | ≤300kg/m² | Wall side pressure | ≥80kg/m² |
Advantages
- Cost-Effective: An affordable housing solution that is easy to transport to a construction site.
- Durability: Made with sturdy steel or aluminum for a long service life.
- Easy to Install: Quick to assemble and can be customized to meet specific needs.

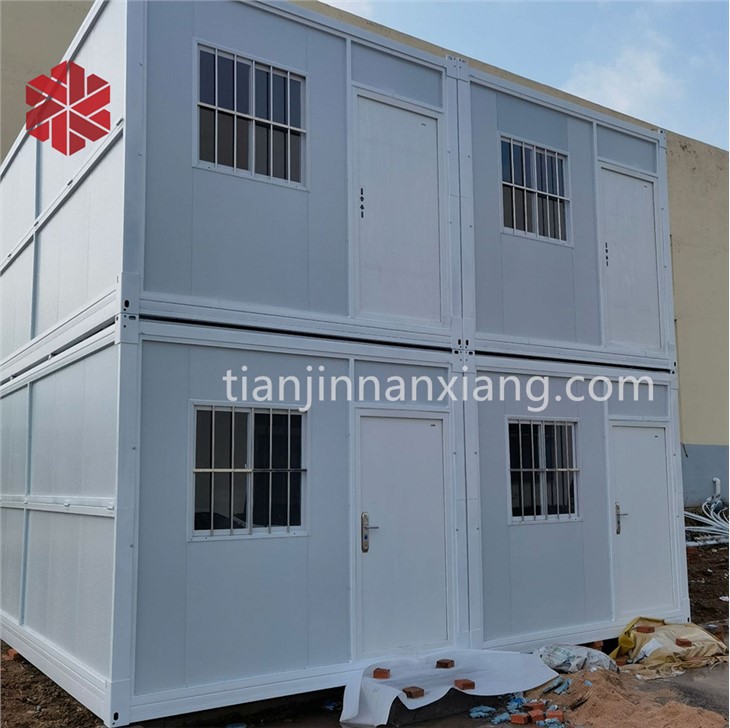

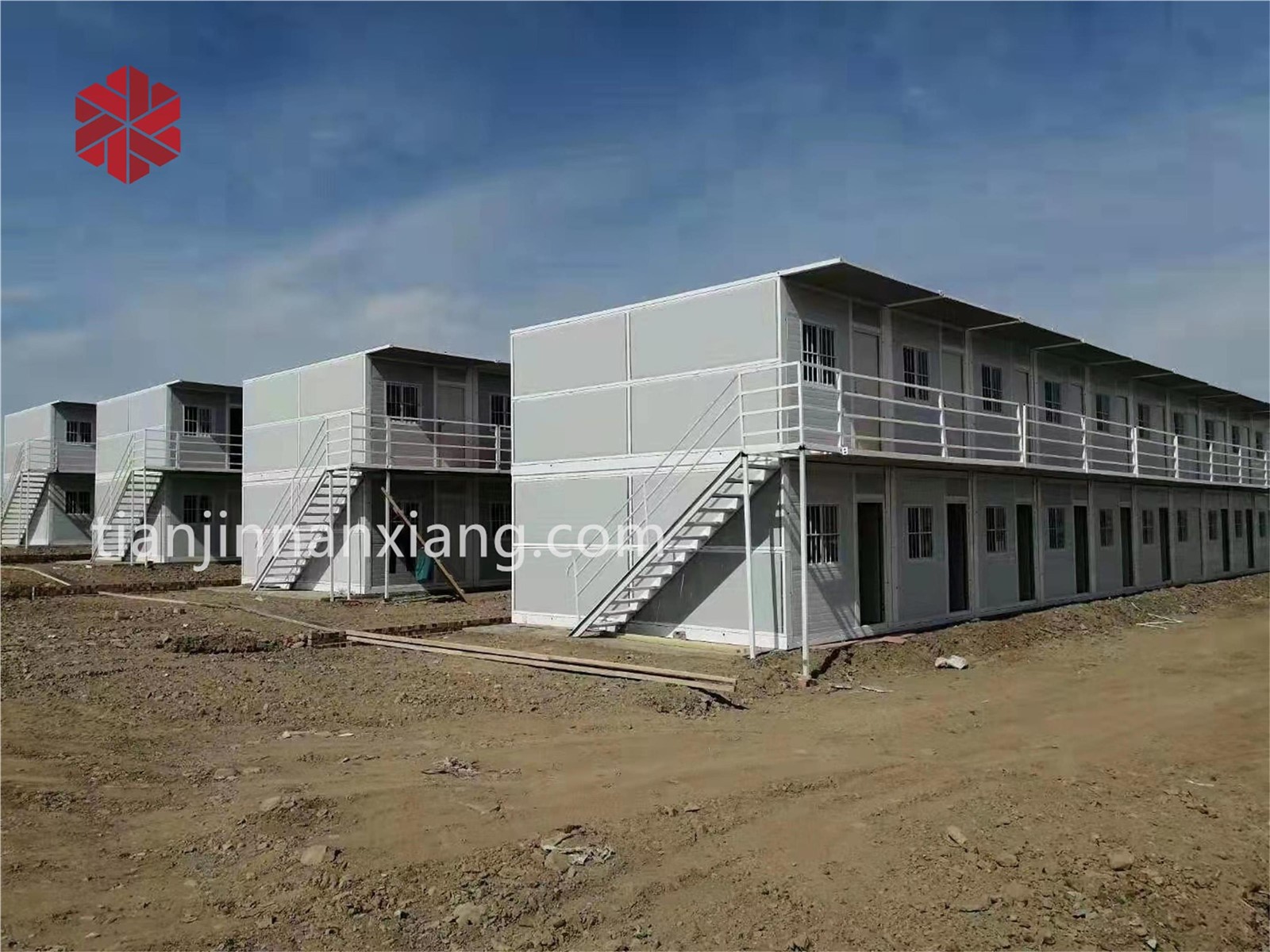

- Flexibility: Can be modified and expanded. Units can be stacked to create multi-story structures.
- Comfort: Can be fitted with amenities like air conditioning, heating, and ventilation to create a comfortable living environment.
