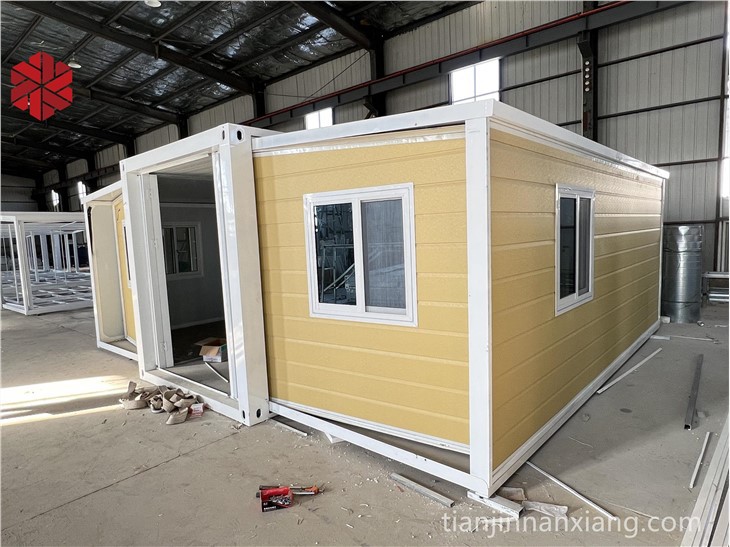

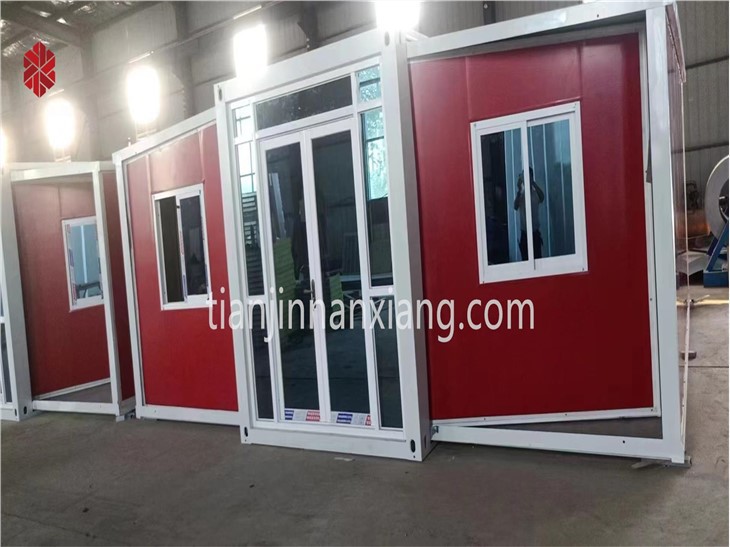

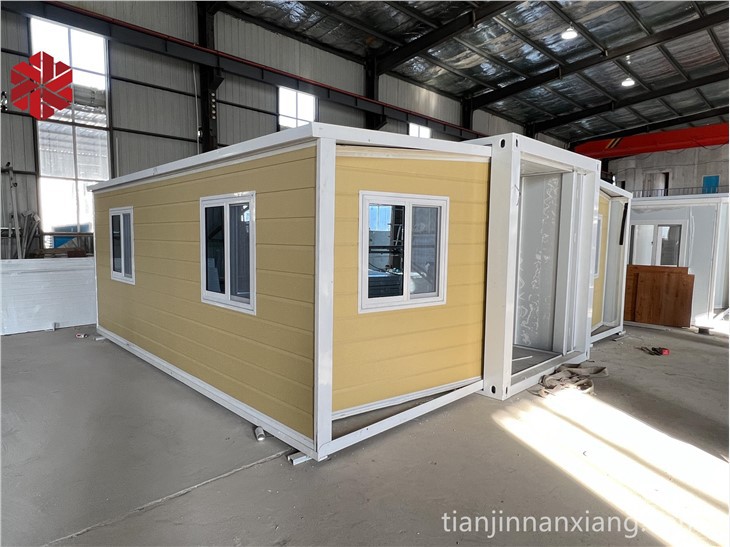

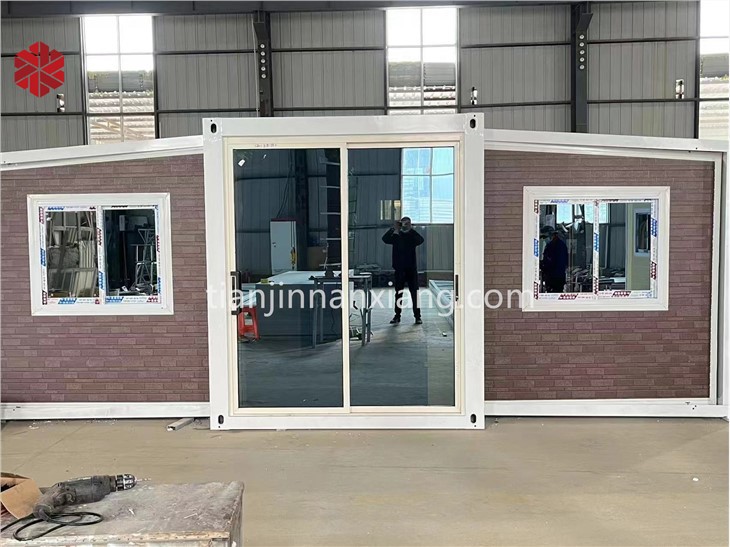

Container Home Duplex
The Container Home Duplex is an innovative and sustainable housing solution constructed from repurposed shipping containers. This duplex-type house is designed for functionality, cost-effectiveness, and eco-friendly living. It’s an excellent choice for those seeking an affordable and sustainable home.
Key Features
This product stands out for its key features, which make it a great option for a wide range of applications.
Sustainability
Built from repurposed shipping containers, this home reduces waste and gives new life to materials that would otherwise end up in landfills. The design is optimized for energy efficiency, reducing reliance on non-renewable resources. It incorporates eco-friendly features such as solar panels, LED lighting, and energy-efficient appliances, making the living space more sustainable.
Affordability
The Container Home Duplex is an inexpensive alternative to traditional housing. The use of shipping containers significantly reduces construction costs, while the prefabricated nature of the design lowers labor costs. These savings are passed on, making it a cost-effective and attractive housing solution.
Customizability
The design is highly customizable to meet different needs and preferences. A range of options are available for floor plans, colors, materials, and finishes, allowing for a unique housing solution tailored to specific requirements.
Durability
Constructed from steel shipping containers, the product is highly durable and can withstand extreme weather conditions. The steel frames have a long lifespan and a rust-resistant surface that protects against harsh environmental conditions. The use of high-quality, non-toxic insulation ensures the home is resistant to mold, mildew, and pests, providing a long-lasting and low-maintenance living space.
The Container Home Duplex is a versatile housing solution widely used for various modern needs, including residential buildings, hospitals, and schools. It provides a safe and stable temporary living space, while its design minimizes environmental impact. Equipped with thick fireproof insulation, it maintains a comfortable indoor temperature, improves thermal efficiency, and minimizes energy consumption.
This duplex is easy to install, requiring only 4 workers to complete the setup in 10 minutes, which significantly reduces installation time. It can also be folded and assembled multiple times for different styles and uses. All materials are recyclable, making it a low-carbon building solution that can save at least 50% on costs compared to traditional construction.
Layout Design
Product Specifications
| Item | Specification |
|---|---|
| Dimension | Expanded size: 5900*6400*2480mm |
| Folding size: 5900*2270*2480mm | |
| Floor | First layer, 18mm plywood/fiber cement board; Second layer: 1.6mm PVC floor; 50mm rockwool base |
| Roof | First layer, 18mm plywood/fiber cement board; Second layer: 1.6mm PVC floor; 50mm rockwool base insulation layer + 0.5mm hot-galvanized steel base tile (optional) |
| Wall Panel | 50/75mm EPS/Rockwool sandwich panels. Default is 50mm EPS. |
| Door | External: Aluminium sliding door (W1500*H2000mm) or single steel door (840×2035mm) with a handle lock. Internal: single steel door (700×2035mm) with a handle lock. |
| Window 1 | White PVC window, 800×1100mm, with double-layer glass (5/9/5mm thick). |
| Window 2 | White PVC window, 600×600mm, with double-layer glass (5/9/5mm thick) and inner manual curtain (for toilet room). |
| PVC Joints | White PVC inner joint for ceiling, floor and columns. |
| Electricity (3C/CE/UL standard) | System: Electrical wiring, installed to moisture-proof specifications. All electrical products meet CE certification. Connection circuit according to engineering specifications. Indoor components: 2 LED lights, 2 ceiling lights, 5 single sockets, 1 single socket, 10 sockets, 1 air conditioning socket, 20A leakage protector. Voltage: 220V, 50HZ. |
| Toilet Room (Optional) | Ceramic toilet. |
| Ceramic wash basin. | |
| 3 side PVC wall and PVC tray with shower curtain, including 1 shower head set. | |
| Plumbing System (Optional) | PPR for water supply and PVC for drain pipe. Fixed on the side after house is erected. |
| Small Kitchen (Optional) | Kitchen Cabinet (L1800/2000*W600mm) with 1 sink. |
| Weight | 2560kg per unit |
