Product Overview

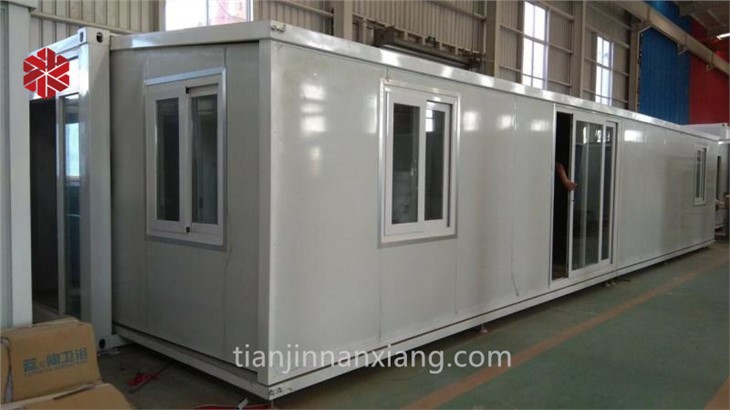

40 Foot Container House is an innovative, affordable solution for modern living. Built from quality materials and engineered for strength, it can serve as a home, office, studio, or workshop. The modular approach supports customization to suit project needs, while insulation with energy-efficient windows and doors helps maintain a comfortable interior and reduce heating/cooling loads. The unit can be shipped in a flat-pack state for quick on-site assembly by a small crew.
Configuration
Basic Features
| Item | Data |
|---|
| Item | 40ft expandable container house |
| External dimensions (mm) | 6300*11800*2480 |
| Internal dimensions (mm) | 6000*11400*2240 |
| Folding state (mm) | 2200*11800*2480 |
| Total weight | 7 tons |
Frame Structure
| Component | Specification |
|---|
| Top girder | Thickness 2.5mm Q235B |
| Bottom girder | Thickness 2.5mm Q235B |
| Side girder | Thickness 1.5mm Q235B |
| Middle column | Thickness 2.5mm Q235B |
| Sidewall frame | Thickness 1.5mm Q235B |
| Subframe | Thickness 1.5mm Q235B |
| Hanging head | Thickness 4mm Q235B |
| Folding hinge | 13mm Galvanized hinge |
| Protective coating (integral frame) | Electrostatic spraying / direct white plastic powder |
| Middle cabinet top & bottom | 150*100 |
| Top & bottom of side cabinet | 80*160*1.5 thickness square pipe |
Top of Box
| Item | Data |
|---|
| External roof | Thickness 0.5mm galvanized sheet |
| Inside ceiling board | Thickness 831 inside ceiling board |
Wallboard
| Item | Data |
|---|
| Middle roof insulation | T150mm glass wood |
| Side/front/rear wall panels | Thickness 150mm glass wood galvanized sheet or Thickness 150mm Foam board |
| Internal partition | T150mm Foam board |
| Internal toilet | 1700*1500 (can be customized) |
Floor
| Item | Data |
|---|
| Middle floor | Fireproof glass magnesium floor (15mm) |
| Floor on both sides | Bamboo wood floor |
Electrical System
Electrical wiring and installation follow moisture-proof specifications; all electrical products meet CE certification. Connection circuit according to engineering specifications. Indoor: 2 LED lights, 2 ceiling lights, 5 single socket 3, single socket 1, 10 socket 3, air-conditioning socket 1, 20A leakage protector. Voltage: 220V, 50HZ.
Other
| Item | Data |
|---|
| Security door | 2 or customized |
| Window | 4-10（920*1120mm） |
| Quality assurance | One year |
Description

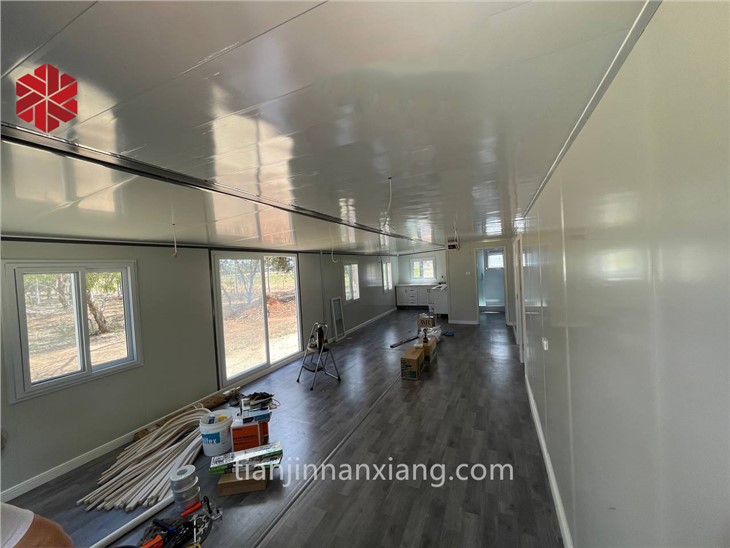

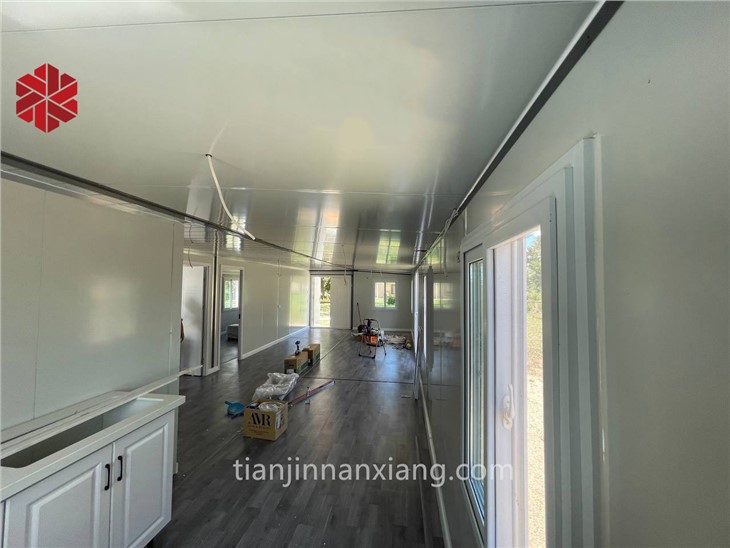

This 40 Foot Container House provides a warm, secure living environment on a limited budget. Steel plate walls and metal flooring deliver a stable, waterproof and fire-resistant structure, with a thick insulation layer for protection in cold weather. The interior includes a multifunctional main room and a separate bathroom area—well suited for compact living.
Product Features
- Customizable color, length, flooring, frame color, and internal facilities. Production can follow design drawings.
- Recyclable materials; galvanized pipe frame for corrosion resistance and strong fire/water performance.
- Lightweight components simplify installation, saving time and cost.
- Typical layout includes living room, bedroom, bathroom, and kitchenette; utilities may include heating/AC, plumbing, electricity, and wiring for internet/communications.
- Compact, movable, and affordable for remote or urban sites, temporary housing, and emergency use.
