20ft Container House – Compact, Modular, and Affordable
The 20ft Container House is a smart solution for modern, sustainable living. Designed for versatility and durability, it meets a variety of residential and commercial needs—ranging from private housing to temporary offices, dormitories, and disaster relief shelters.
Key Features
- Compact and Mobile: Easy to transport and relocate. Ideal for remote locations or temporary setups.

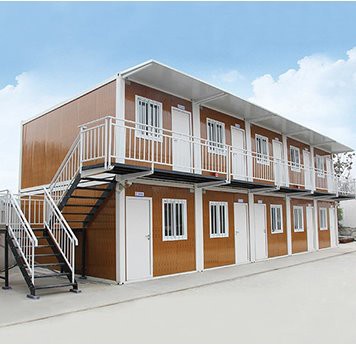

- Modular Design: Combine multiple units to create larger spaces or separate private rooms.
- Energy Efficiency: Comes with high-quality insulation. Optional solar panel system for sustainable energy use.
- Fast Assembly: Designed for easy setup, even with minimal construction experience.
- Durability: Built with fireproof, waterproof, and corrosion-resistant materials. Service life up to 15–20 years.
Technical Specifications
- External Dimensions: 5800×2480×2500mm
- Insulation: λ=0.043W/m·K; Rockwool (65KG/m³) or optional polyester foaming
- Sound Insulation: ≥30dB
- Wind Resistance: 0.5KN/m²
- Seismic Grade: Magnitude 8
- Ground Load: 2.0KN/m²
- Roof Load: 0.5KN/m²
- Fire Resistance: Class A throughout roof, wall, and floor
Construction Details
- Main Frame: Steel frame with zinc coating (80g/m²); thickness options: 2.0mm to 3.5mm
- Wall Panels: Sandwich panel (50/75mm); skin thickness 0.35–0.5mm
- Roof: 0.35mm sealed steel sheet with double-layer rockwool insulation
- Flooring: Cement fiber board/MGO board base with PVC surface (color customizable)
Usage Scenarios
This house is suitable for:
- Construction sites, oil fields, and mining camps
- Military bases and school expansion projects
- Disaster relief or temporary relocation
- Tourism and hospitality (as guest houses or beach cabins)
Product Advantages
- Easy to disassemble and reassemble multiple times
- Can be lifted, transported, and fixed with ease
- Great thermal and sound insulation
- Economical transport (4 units per standard shipping container)

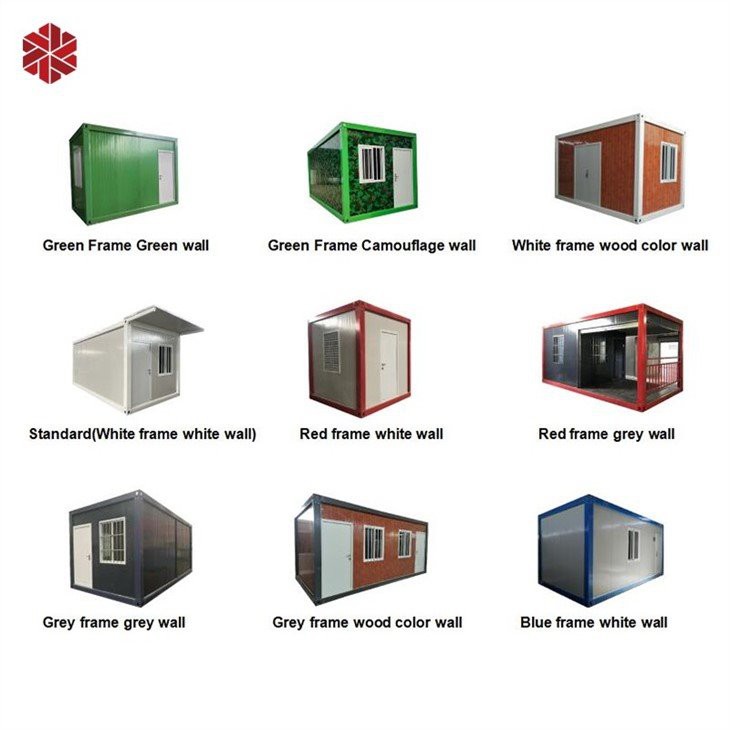

- Customizable color, finishes, and layout options
Gallery
